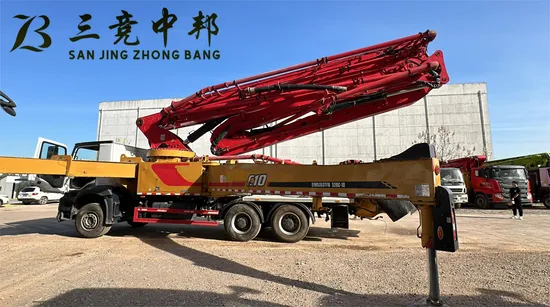

2020 Hot Selling Used Truck Mounted Concrete Pump for Sale
| Negotiable | 1 piece (MOQ) |
Basic Info.
Model NO.
SYM5445THBES
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
120m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.2mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
Red
Boom Height
31~47
Theoretical Throughput
90~130
Pumping Pressure
6.1~18.0
Driving Mode
Automobile Drive
Transport Package
Nude Packing
Specification
43870
Origin
China
HS Code
870590910
Product Description
| 1. Strong working performance: SYM5445THB 560C-8A pump truck has 560 engine drive system, strong power, can easily respond to various site needs. 2. Efficient construction capacity: the pump truck is equipped with 8 sections of large arms, reaching a working radius of 56 meters, which can meet most of the site construction needs. At the same time, the pumping capacity of the pump truck has reached a high level of 180m³/h, with the ability to quickly pump concrete. 3. Stable pumping performance: The pump truck adopts an advanced hydraulic system, which can stably pump concrete, and also has a protective device to ensure the safety of the pumping process. 4. Easy operation: The pump truck adopts humanized design, easy operation, one person can complete the entire work flow. At the same time, the hydraulic system of the pump truck also has an automatic control function, which can automatically adjust the pumping speed and pressure, reducing the burden of the operator. 5. Highly reliable: The pump truck uses high-quality materials and advanced manufacturing processes to have a long service life. 6. Convenient maintenance and maintenance: All parts of the pump truck are modular design, easy to repair and replace. The pump truck is also equipped with an intelligent diagnostic system, which can monitor the working status of the equipment in real time and find and solve problems in time. In short, SYM5445THB 560C-8A pump truck has strong working performance, efficient construction capacity, stable pumping performance, easy operation, highly reliable, convenient maintenance and maintenance advantages, plays an important role in site construction. |
| Vehicle parameters | |
| Total length | 14880mm |
| Overall width | 2550mm |
| Total height | 4000mm |
| All up weight | 44000kg |
| Pumping system parameters | |
| Concrete theoretical displacement low pressure | 180m³/h |
| Concrete theoretical displacement high pressure | 120m³/h |
| Theoretical pumping pressure low | 8.3Mpa |
| Theoretical pumping pressure High pressure | 12Mpa |
| Theoretical pumping frequency low pressure | 29 times per minute |
| Theoretical pumping times high pressure | 20 times/minute |
| Chassis parameter | |
| Chassis type | SYM5440THB1E |
| Engine type | D12C5-490E0 |
| Maximum net engine power | 348/1900kW/rpm |
| Emission standard | V |
