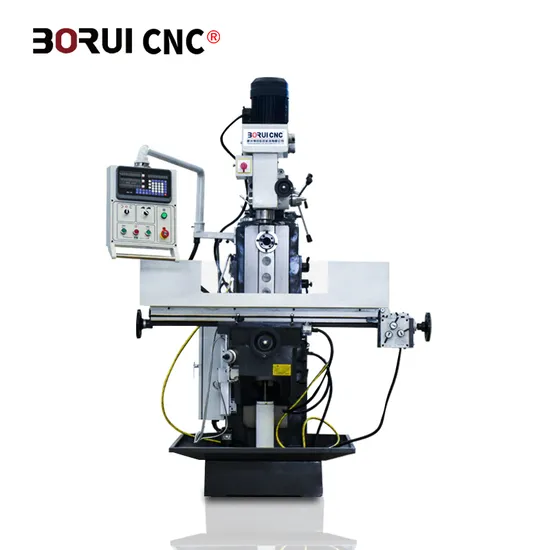

Zx6350 Drilling Machine with Drilling Machine Gadget Price in China

Product Description

ZX6350ZA Drilling Press Machine Multi With Drilling Machine Gadget Price In China
Product Description
Universal milling and drilling machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
The main performance characteristics:
Our ZX6350 drilling & milling machine is a multifunction drilling and milling machine, bed rigidity, movement stability, high accuracy. Guide by quenching with good wear ability. Vertical milling, horizontal milling adopts gear drive, transmission of large torque. Longitudinal can be moved with machinery power feeder, reduce labor intensity and improve the machining accuracy and surface finish. Guide by quenching with good wear ability. Milling head mounted on the front sliding arm, can move back and forth, not only in the vertical plane of rotation about 45 degrees, but also turn 360 degrees in the bed with a good universal nature of the processing.
The ZX6350 drilling & milling machine has many additional functions, such as milling, drilling, boring, plane abrasion, etc. So long as installed appropriate attachments. Operation expediently, performance reliably, applying to metal finishing and maintain of kinds of companys, especially tools, moulds, fastener processing.
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
Milling head can be rotated 45 degrees,
DRO supplied at extra cost.
Product main technical parameters:

MODEL	ZX6350
Max. drilling dia.(mm)	50
Max. end milling width(mm)	100
Max. vertical milling dia.(mm)	25
Max boring dia.(mm)	120
Max. tapping dia(M)	M16
Spindle tapper (MT)	7:24 ISO40
Distance from spindle nose to working table(mm)	80-460(Vertical)
Spindle speed range(r.p.m)	(vertical)90-2000 (horizontal)40-1300
Spindle travel(mm)	120(vertical)
Worktable size (mm)	1250*320
Worktable travel(L/H/V)(mm)	600*300*430
Main motor(Kw)	(vertical)1.5 (horizontal) 2.2
Overall diametion(mm)	1680*1480*2250
N.W/G.W(Kg)	1450/1560

Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
