650ton Liquid Filling Bottle Cover Cap Rotary Injection Compression Machine

Product Description

650 Ton Liquid Filling Bottle Cover Cap Rotary Injection Compression Machine
Product Description

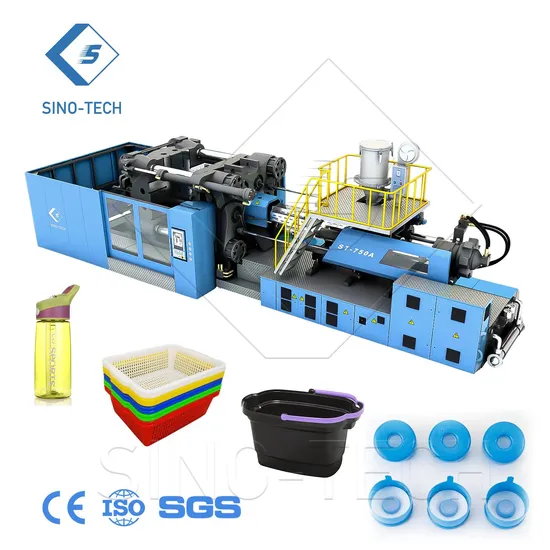

SINO-TECH ST-650A injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-650A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

ITEM	UNIT	ST-650A
INJECTION UNIT
SCREW DIAMETER	mm	85		90	95
SCREW L/D RATIO	L/D	22.3		21	19.9
THEORETICAL SHOT VOLUME	cm³	2298		2576	2870
SHOT WEIGHT99(PS)	g	2091		2344	2611
INJECTION PRESSURE	Mpa	206		184	164
THEORETICAINIECTION RATE(PS)	G/s	400		448	499
PLASTICISING CAPACITY	G/s	60		75	85
SCREW TORQUE	N.m	6580
MAX.SCREW ROTATE SPEED	R/min	125
INJECTION STROKE	mm	405
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	650
MAX.OPENING STROKE	mm	870
SPACE BETWEEN TIE BARS	mm	850*850
MOULD HEIGHT	mm	350-900
MAX DAYLIGHT	mm	1770
EJECTOR FORCE	KN	200
EJECTOR STROKE	mm	260
EJECTOR QUANTITY		17
OTHER
PUMP MOTOR POWER	KW	55
PUMP PRESSURE	MPa	16
HEATING POWER	KW	37.15
HEATING ZONE		6
SIZE	m	9.3*2.3*2.7
NET WEIGHT	t	32
OIL TANK CAPACITY	L	1200
INTERNATIONAL DESIGNATION		6300-4710

Detailed Photos

Application
Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
