High-Efficiency Semi-Conductor Bar Cutter for Solar Battery Production

Product Description

Equipment Use: Designed to enhance cutting efficiency, this model caters to customer demands with a roller length of 690mm and a table size of 170/145mm*690mm*160mm*2 version. Ideal for cutting products with thicknesses ranging from 0.3mm to 65mm.

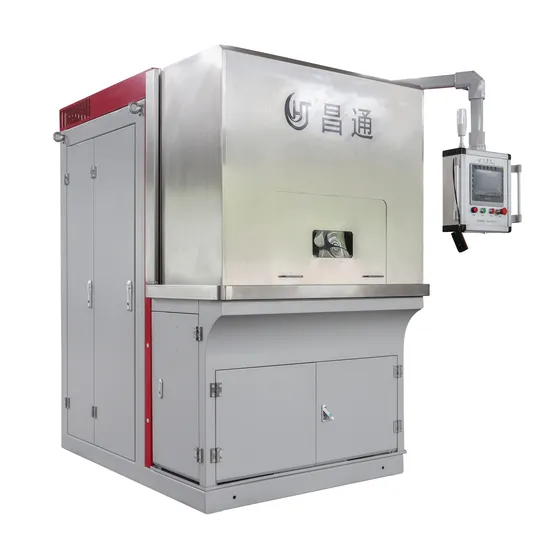

Introducing the CHTXQ-690F Double Plate Multi-Wire Cutting Machine – Featuring Outstanding Product Characteristics
1. With four independently-driven motors powering each roller, this design minimizes steel wire wear on rollers, enhancing roller longevity. The roller bracket is precision-molded to meet spindle installation coaxial requirements, ensuring smooth operation.
2. The option for an LED display makes cutting data presentation more intuitive, allowing for greater user insight.
3. Featuring an under-table cutting mechanism, this design allows materials to be conveniently loaded and unloaded from the bottom up.
4. Available in both high-speed and standard models, the high-speed version offers faster processing, superior line speed, and heightened cutting efficiency – perfect for utilizing thinner diamond lines.
5. With a transverse movement capability, this table moves back and forth, providing versatility to cut tiles and enabling a single-line cutting function.
6. Designed with a spacious loading area of 170/145mm*690mm*160mm*2 version, this model significantly boosts cutting efficiency.
7. Boasting spindle accuracy ≤0.01mm, this machine leverages patented structure dust (Patent No. ZL201320681902.7) for stable operation and easy disassembly.
8. User-friendly and straightforward, the machine features an automatic lifting shield, a fully expanded workbench, and effortless material and roll handling capabilities.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This advanced double-station multi-wire cutting machine expertly handles diamond wire products, processing two plate materials simultaneously. With a roller length of 690mm, it maximizes cutting area (220mm*690mm*160mm*2 version) and supports both single and multi-line functions, ideal for hard and brittle material batch processing.
This model is a high-performance multi-line cutting machine, equipped for diamond line processing with a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm. It is designed for slicing open products with thicknesses from 0.3mm to 65mm, specializing in hard and brittle materials batch processing.
This compact multi-line cutting machine comes in single and double station models, catering to small-batch product processing. With simple and convenient specification replacements, it efficiently handles cutting sheet thicknesses from 0.5mm to 30mm, offering both single and multi-line cutting functions for hard and brittle materials.
>Stable Wire Web Control
Our precision-engineered cone-positioned structure endows the rollers and wire spools with exceptional accuracy and rigidity, effectively minimizing wire web shaking.
>Optimized Pulley System
Featuring an innovative 8 pulleys design, this system significantly reduces diamond wire torsion, stabilizes tension fluctuations, and lowers the wire breakage rate.
>Easy Wire Winding
The wire pay-off wheel employs the standard universal spool (PV600 reinforced I-wheel), eliminating the need for rewinding, streamlining your process.
>Safety Guarantee
The main operation door is electrically adjustable for raising and lowering, equipped with a robust safety device for assured protection.
>Wire Break Memory System.
>Easy Operation
With an open cutting room on three sides, this design ensures easier operation and maintenance, prioritizing user convenience and efficiency.
