9m Non-Lockable Pneumatic Antenna Telescopic
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
NR-2.2-9-30N-6S-51-140
Usage
TV, Automotive
Wave Range
C Wave Range Program
Type
Telescopic Mast
Extended Height
6m, 8m, 10m, 12m, 15m, 18m, 21m, 25m, 30m
Payloads
Maximum 400kg@15m Height
Materials
Aluminum Alloy 6063t5
Lifting Type
Pneumatic Lifting
Working Air Pressure
0.15/0.2 MPa
Transport Package
Sea Shipping Crate Box
Specification
9m-30kg payloads
Trademark
nrentech
Origin
China
Production Capacity
200units/Month
Product Description

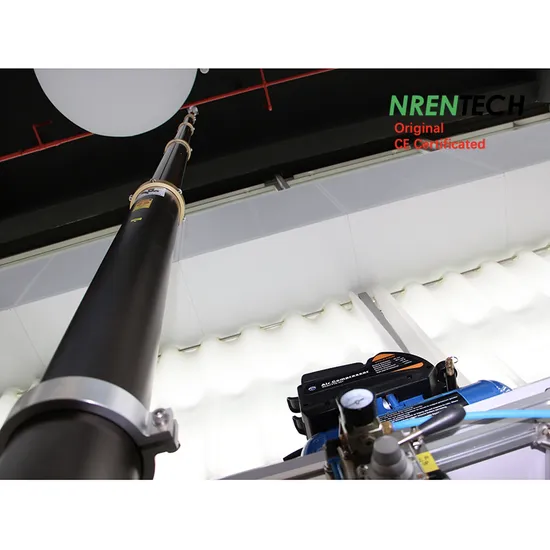

9m Pneumatic Telescopic Mast-30kg payloads NR-2.2-9-30N-6S-51-140 9m Non-lockable Pneumatic Telescopic Mast-30kg payloads Item #: NR-2.2-9-30N-6S-51-140 1> Extended Height: 9m 2> Retracted Height: 2.2m 3> Payloads: 30kg maximum @ 0.15Mpa/22 PSI working air pressure 4> Type: Non-lockable mast (automatic extension/ retraction) 5> Number of sections: 6 6> Section dia. * thickness: 51~140mm 7> Materials: aluminum alloy 6063T5 8> Mast weight: 50kg approx. 9> Working air preesure: 0.15Mpa/22PIS as maximum recommend 10> Working temperature: -25~55 Celcius Degrees 11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel Charging accessories: Ground mounting tripods, Guying wires kits 2x4, vehicle side mounting brackets, Electric air compressor DC or AC leading time: 20 days data update on 20230701| 9m Non-Lockable Pneumatic Telescopic Mast-30kg Payload | ||||||
| NR-2.2-9-30N-6S-51-140 | ||||||
| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.2 | m | 7.2 | ft | |
| Vertical Payload | : | 30 | kg | 66 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |
| Collar Type | : | Non-Locking (Automatic Extention, Automatic Retraction) | ||||
| Inside Electric Wires | : | \ | ||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 51 | mm | 2.0 | in | |
| Basement section diameter | : | 140 | mm | 5.5 | in | |
| Mast Weight | : | 50 | kg | 110 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| \ | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | \ | |||||
| data update on 20230701 | ||||||
