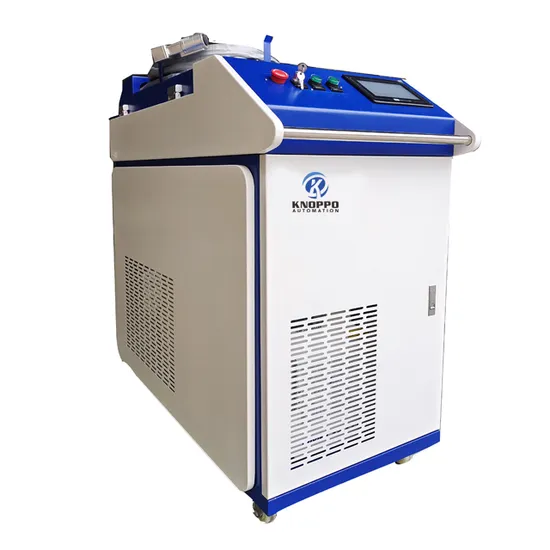

3000W 1500W 2000W Raycus Laser Cleaner Rust Fiber Laser Cleaning Machine

Product Description

Product Description
APPLICATION :
Fiber laser cleaning machine can clean metal rust , oil , dust and paint etc without touch , very safe for mould , machine parts , rail and boat etc , no damaged . Most important of all , laser cleaning machine is eco-friendly cleaning, no pollution, no chemical cleaning .
A Metal surface cleaningB Removal paint of metal surfaceC stains cleaning on the surfaceD Surface coating cleaningE Pre-treatment of welding surface cleaningF Stone surface cleaningG Rubber mold residue cleaning
Laser Cleaning Principle
Laser cleaning uses the difference in the absorption of laser radiation of a specific wavelength between the substrate and the contaminants, or the temperature difference between the melting and boiling points of the two.
After the pollutants absorb the laser energy, they vaporize, vibrate, and instantly expand due to heat, and finally peel off the surface of the substrate to achieve the purpose of cleaning.
Detailed Photos
Raycus Laser Source and S&A Water Chiller
Raycus is largest manufacturer of laser source in China , can weld carbon steel , stainless steel and aluminium etc . Good quality
and long life . Suitablef for 24 hours continuous working.
SUP Laser Cleaning Head
With hot temperature alarm and double protections lens , very sale . small and light , easy to operation.
SUP Control Sytsem
Different cleaning parameters is saved on system , when you weld metal , you need only choose it . Also support multi languages , such as English , Polish , Spainish , Russian , Korean , Japanese , Portugal etc .

France Schineider Electric Parts
European CE standard , good quality and long lifetime .

Product Parameters

NO	Description	Parameter
1	Model	KC-M
2	Laser Power	1000W 1500W 2000W 3000W
3	Laser Type	MAX / Raycus/BWT
4	Central wavelength	1064nm
5	Line length	10 M
6	Cleaning efficiency	12 m3/h
7	Support language	English, Chinese, Japanese, Korean, Russian, Spanish, Polish
8	Cooling Type	Water cooling
9	Average Power (W), Max	1000W / 1500W/ 2000W/3000W
10	Average Power (W), Output Range(If adjustable)	0-100
11	Pulse-Frequency (KHz),Range	20-200
12	Scanning Width (mm)	10-150/300
13	Expected Focal Distance(mm)	160mm
14	Input Power	380V/220V, 50/60H
15	Dimensions	1300mm×700mm×1150mm
16	Weight	260KG

Packaging & Shipping
Wooden box package , safedelivery
Certifications
Our fiber laser welding machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
