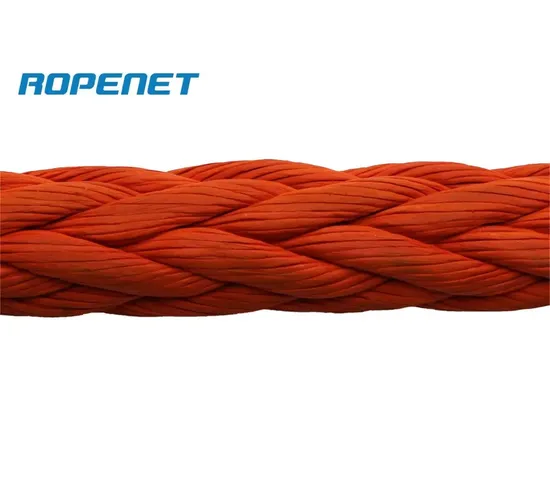

Hmpe High Performance Rope 12 Strands Braid Mooring Line/ Heavy Lifting Sling 64mm

Product Description

Place of Origin Shandong, China Brand Name ROPENET Part Hinge Product Name 12 strand treated HMPE Mooring Line Material HMPE Diameter 8-120mm Usage mooring line, towing rope, haswer rope Feature Good UV resistance MOQ 500meters Package REEL PAYMENT T/T L/C Certificate CE Certified. Valid from 2018-03-05 until 2049-12-31 Keyword 12 strand HMPE

Features:
Specific Gravity: 0.97g/cm³ Melting Point: 145ºC Breaking Elongation:<4% Abrasion Resistance: Very Good Chemical Resistance: Very Good UV Resistance: Very Good Water Absorption: 0% Wet-dry Strength Ratio: 100% Applications:
Applications: Davit Lifting Sling Tugging Main Line Fishing Line Mooring Line Offroad Winch Rope General Working Line Description:
Made of Ultra High Molecular Weight Polyethylene(HMPE) fiber, through special treatment, very high break strength and light weight, break strength is 1.5 times higher than same size steel wire rope but weight is super light, around 1/8 of same size steel wire rope. Specifications:

Dia		Circ.	Weight		Unspliced MBL		Spliced MBL
mm	inch	inch	kg/100m	lbs/100ft	ton	kN	ton	kN
6	1/4	3/4	2.3	1.5	4.1	40	3.7	36
8	5/16	15/16	4.0	2.7	7.0	69	6.3	62
10	3/8	1-1/8	6.1	4.1	10.7	105	9.7	95
12	1/2	1-1/2	8.7	5.8	15.3	150	13.8	135
14	9/16	1-3/4	11.7	7.8	20.4	200	18.4	180
16	5/8	2	15.1	10.1	26.0	255	23.5	230
18	3/4	2-1/4	19.0	12.7	32.1	315	29.1	285
20	13/16	2-1/2	23.2	15.6	38.8	380	34.7	340
22	7/8	2-3/4	28.1	18.8	45.9	450	41.3	405
24	1	3	33.1	22.2	53.1	520	48.0	470
26	1-1/16	3-1/4	38.4	25.8	61.2	600	55.1	540
28	1-1/8	3-1/2	44.5	29.8	69.9	685	62.8	615
30	1-1/4	3-3/4	50.6	33.9	79.1	775	71.4	700
32	1-5/16	4	57.5	38.6	88.3	865	79.6	780
36	1-1/2	4-1/2	72.0	48.3	109.2	1070	98.5	965
40	1-5/8	5	88.1	59.1	131.1	1285	117.9	1155
44	1-3/4	5-1/2	106.0	71.1	155.6	1525	140.3	1375
48	2	6	125.0	83.8	181.1	1775	163.3	1600
52	2-1/8	6-1/2	146.0	97.9	208.7	2045	187.8	1840
56	2-1/4	7	169.0	113.4	237.8	2330	213.8	2095
60	2-1/2	7-1/2	193.0	129.5	268.9	2635	241.8	2370
64	2-5/8	8	220.0	147.6	301.0	2950	270.9	2655
68	2-3/4	8-1/2	248.0	166.3	335.2	3285	301.5	2955
72	3	9	278.0	186.5	370.9	3635	333.7	3270
76	3-1/8	9-1/2	309.0	207.3	408.2	4000	367.3	3600
80	3-1/4	10	343.0	230.1	446.4	4375	402.0	3940
88	3-5/8	11	417.0	279.7	528.6	5180	475.5	4660
96	4	12	497.0	333.4	616.3	6040	554.6	5435
100	4-1/8	12-1/2	515.1	345.5	662.8	6495	596.4	5845
104	4-1/4	13	555.5	372.6	710.2	6960	639.3	6265
108	4-1/2	13-1/2	597.3	400.6	759.2	7440	683.2	6695
112	4-5/8	14	640.4	429.5	809.7	7935	728.6	7140
116	4-3/4	14-1/2	685.4	459.7	861.2	8440	775.0	7595
120	5	15	731.6	490.7	914.3	8960	823.0	8065
