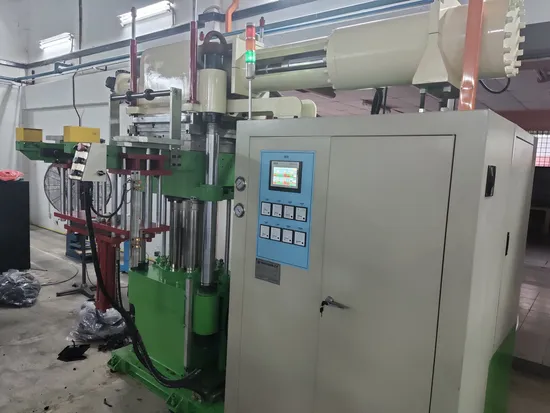

China Top Quality Rubber Injection Machine/Rubber Injecting Machine (CE/ISO9001)

China Top Quality Rubber Injection Machine/Rubber Injecting Machine (CE/ISO9001)

US$11,000.00
1 Set
US$10,000.00
2+ Sets

Basic Info.

Model NO.
CXF-300
Type
Injection Blow Molding
Structure
Vertical and Horizontal Composite
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
General Character
Seal Completely,Pressure Steady
Temperature
High Precision, Tolerance 1 Degree
PLC
Simens Automatic Control
Plate Material
Chrome Plated,Mirrow Polishing
Hydraulic Parts
Yuken,
Walves,Pump
Rexroth,Germany
Seal
Nok,Japan
Transport Package
Wooden Case Safety Packing
Specification
CE, ISO9001: 2008
Trademark
CX
Origin
China
HS Code
8477800000
Production Capacity
30 Sets/Month

Product Description

Model No.: CXF300T
Name : Name : Rubber injection moulding machine,Injection moulding press, Rubber injection machine, Rubber injection press, Rubber injection moulding machine, rubber injection moulding press.
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
FEATURES
Mechanical system:

1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.

2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the temperature distribution.

3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.

4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm

Oil line system:

1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.

2. The safe and energy-saving design, improve efficiency, reduce energy consumption.

3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment

4. Indenpendent exhaust circuit design, make the exhaust of 100%.

5. Using high quality hydraulic components, stable and reliable.

WH series rubber injection molding machine(rubber machinery) is suitable for injection and molding all kinds of rubber,bakelite, plastic, etc. It is mostly suitable for high quality requirements, complex shape , thick wall and these products with embedded parts.
Main parameters below :

Model No.

CXF-200T

CXF-300T

CXF-400T

Clamping force(Ton)

200

300

400

Stroke(mm)

550

600

600

Heating plate size(mm)

510*500

600*650

650*700

Diameter of cylinder(mm)

350

450

500

Injection volume(cc)

2000

3000

4000

Horsepower(HP)

15*1

20*1

25*1

Type of mold opening

2RT/3RT/4RT up down in/out-2RT/3RT/4RT

Single shaft thermal electricity(kw)

12.6

16

25

Total power(kw)

28

36

45

Gross weight(kg)

6000

9000

9500

Machine size(mm)

3200*2400*2500

3700*2560*2710

4000*2800*2850

Photo of our factory for rubber injection moulding machine :
Photo of customer who use our rubber injection moulding machine:
Service of us
1- We can design whole line machine for EVA sheet production. We also provide techncial for EVA sheet production, our engineer have rich experiences in this area. we go to your facotry to help intallation and guide the worker .
2- The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
