Yes Villa Family Amitime Carton Box 7~20kW heatpump heat pump

Product Description

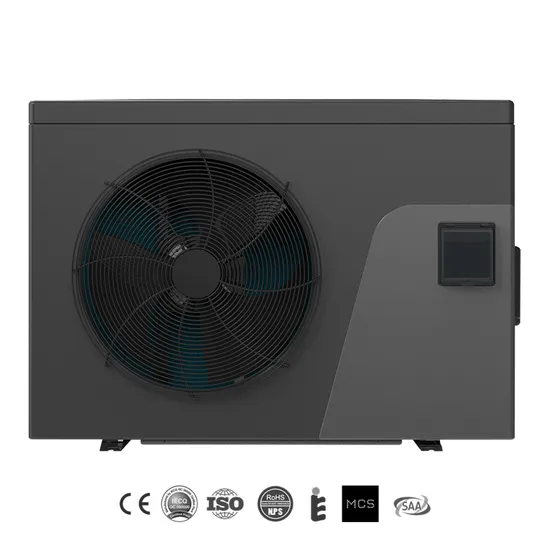

Horizontal plastic casing Swimming Pool Heat Pump with R32
Pisces FI represent our Inverter horizontal swimming pool heat pump with ABS plastic housing, which can prevents 100% away from corrosion. Like the most romantic contellation-Pisces, which always purse a high quality and romantic like, our Pisces FI range is a fantastic product which can always fit your fantasy swimming pool, provide you poetical and cheerful swimming time with your family, and give you a poetical and cheerful life.
Technical

Model		Pisces FI 07	Pisces FI 10	Pisces FI 13	Pisces FI 15	Pisces FI 20(Tri)	Pisces FI 24(Tri)	Pisces FI 30(Tri)
Référence fabricant		AVAC-05V1FEC	AVAC-07V1FEC	AVAC-09V1FEC	AVAC-11V1FEC	AVAC-15V1(4)FEC	AVAC-18V1(4)FEC	AVAC-24V1(4)FEC
Performance at Air 26ºC, Water 26ºC
Capacity	KW	6.7	8.63	11.9	13.8	19.4	23.8	30.5
COP	W/W	6.36	6.1	5.78	5.47	5.58	5.35	5.43
Power input	KW	1.05	1.44	2.06	2.53	3.48	4.45	5.63
Performance at Air 15ºC, Water 26ºC
Capacity	KW	5.1	6.38	8.66	10.74	14.7	17.6	24
COP	W/W	4.87	4.76	4.59	4.63	4.59	4.49	4.54
Power input	KW	1.04	1.34	1.88	2.32	3.2	3.93	5.29
Performance at Air 35ºC, Water 30ºC
Capacity	KW	2.72	4.20	5.37	6.73	9.96	12.20	15.20
COP	W/W	4.66	3.90	4.10	4.08	3.41	2.95	2.78
Power input	KW	0.58	1.08	1.31	1.64	2.91	4.14	5.47
Performance at Air 2ºC, Water 26ºC running 15min
Capacity	KW	3.72	3.76	5.13	6.13	9.96	12.40	17.50
COP	W/W	3.99	3.29	3.09	3.03	3.41	3.68	3.65
Power input	KW	0.93	1.14	1.65	2.02	2.91	3.38	4.79
Performance at Air -7ºC, Water 26ºC
Capacity	KW	2.78	2.65	4.77	5.12	8.68	10.3	13.1
COP	W/W	3	3.12	2.69	3.2	3.16	3.18	2.99
Power input	KW	0.91	0.85	1.77	1.6	2.74	3.24	4.39
Power supply		230V/1 Ph/50Hz					230V/1 Ph/50Hz	230V/1 Ph/50Hz
Max power input	KW	1.8	2	3.0	3.5	4	5.3	6.2
Max current Input	A	8	9	13.0	16	17.5	23	27
Rated power	KW	1.04	1.34	1.88	2.32	3.2	3.93	5.29
Rated current	A	4.5	5.8	8.2	10	13.9	17.1	23
Fuse or circuit breaker(A)	A	10.0	11	15	18	20	28	36
Water flow	m³/h	3.0	3.0	3.87	4.73	6.45	7.75	10.33
Noise at 10m	dB(A)	12.0-20.0	12.7-25.3	12.8-25.4	14.5-29.0	14.0-28.6
Net/Package dimensions	mm	823×375×646	823×375×646	823×375×646	906×375×646	1104×395×746	1133×545×846	1133×545×846
Net/Package dimensions	mm	894×405×800	894×405×800	894×405×800	974×405×800	1174×425×881	1165×575×1025	1165×575×1025
Net/poids weight	kg	42.5/52	44.5/54	49.5/58	55.8/65.8	70/83	88.5/105.8	96/114
Advised pool volume	m³	15-30	22-43	30-56	37-68	45-85	54-90	72-120
Advised Pool Volume (fabricant)	m³	20	28	36	45	60	72	96
Heating temperature range	ºC	15~40ºC
Cooling temperature range	ºC	8~28ºC
Operating range	ºC	-7~43ºC
WIFI		YES

Note:
(1) Heating condition: water inlet/outlet temperature: 30 °C/35°C, Ambient temperature: DB 7 °C /WB 6 °C;
(2) Heating condition: water inlet/outlet temperature: 40°C/45°C, Ambient temperature: DB 7 °C /WB 6 °C;
(3) Cooling condition: water inlet/outlet temperature: 23 °C/18°C, Ambient temperature: DB 35 °C /WB 24 °C;
(4) Cooling condition: water inlet/outlet temperature: 12°C/7°C, Ambient temperature: DB 35 °C /WB 24 °C;
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit.

Certifications
Company Profile

Exhibition

FAQ
Q: Do you provide OEM & ODM?
A: Yes. We can design products and make logos, labels, cartons, user manuals etc. according to our customer's demand.
Q: What's your MOQ?
A: For official orders, our MOQ is a full container load of 40 feet contaienr.
Q: What's your lead time for orders?
A: Usually 30-35 days. For order of big quantity, to be discussed.
Q: What's your production capacity?
A: We have in total 10 production lines in our factory in Zhongshan now, the production capacity is around 1000 pcs/day.
A new base in Shunde will get ready in 2023 and our production capacity will increase to around 2500 pcs/day.
Q: How can I get the price?
A: We usually quote within 24 hours after we get your inquiry.
Q: What's the payment terms?
A: By T/T, 30% deposit to confirm the order, and the balance to be done before shipment.
Q: How long is your warranty?
A: One year warranty for complete machine, three years warranty for compressor, and long-term technical support.
