Amc16-Dett 6 Circuits DC Energy Meter with Hall Sensor for Telecom Tower

Product Description

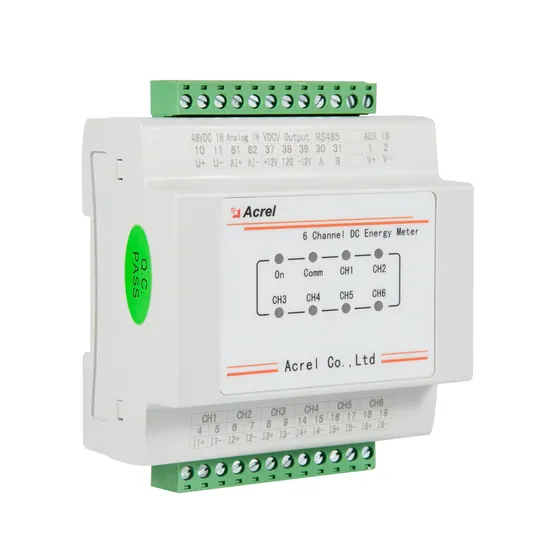

AMC16-DETT 6 Circuits DC Energy Meter with Hall Sensor for Telecom Tower
AMC16-DETT Base Station DC Energy Meter for 5G Tower is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering.The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of tele-metering, tele-indication, tele-adjusting, metering in real-time, energy quality abnormal alarm, data storage, and processing, data interaction.

Specification

Input	DC rated voltage	1 channel: -48VDC
	DC current	6 channels hall sensors: total 200A/5V, China Telecom, China Mobile, China Unicom and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V.
	Commercial power monitoring	1 channel: 0-5VDC
	Overload capacity	Voltage:1.2times continued,2 times continued 1s; Current: 1.2 times continued,10 times continued 1s.
Accuracy (superposition hall sensors)		1%In≤I≤10%In error±2.5%; I>10%In error±2%
Measurement resolution		Voltage: 0.01V, Current: 0.01A, Power : 0.01kw, Energy: 0.01kwh
Functions	Basic function	Monitor device system time, total voltage, total current, power, energy, each channel voltage, current, power, energy; LED display,RS485 communication
	Metering function	Start current: under rated voltage, when the load current value of the meter doesn't exceed 1% of the max. current, the meter starts. Shunt running current: when there is no current in the current circuit of the meter, and 85%-125% of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
	Alarm function	DC under-voltage, DC over-voltage, one power down, module voltage loss, metering branch error, internal program error, clock error, memory failure, AC input power failure

Panel

Dimension

Wiring
Recommend Hall Sensor

AHKC-EKA (50A/5V)

AHKC-EKB (100A/5V)

AHKC-K (200A/5V)

Networking
