5/16 3/16 3/8 Inches 1n12rz 1L18RP 1L18rz 1n22PP 1K22pxz 7j46rxz Wireline Cable

Product Description

Product Description

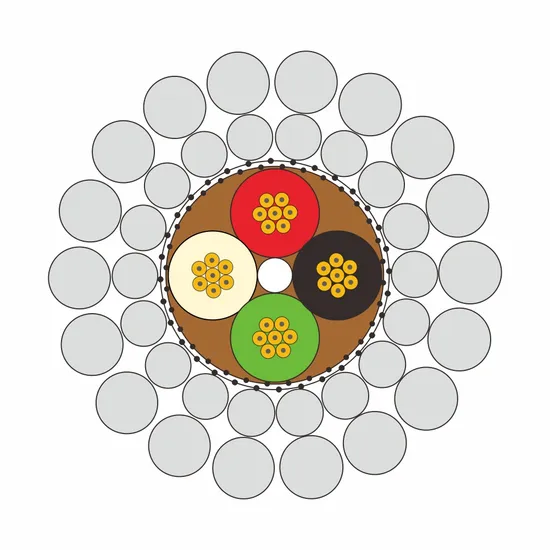

Stainless Steel Multiconductor Borehole Armored Logging Cable for oil gas well logging
Geophysical Logging Cable Introduction:
Logging Cable Is Used for Logging, Perforation,Core Taking and Other Operations of Various Oil and Gas Wells, And Can Also Be Used in Water Conservancy and Hydrological Survey, Coalfield Geological Exploration, Geothermal Logging and so On. It Is a Connecting Line Between the Surface System and the Underground Instrument as a Weight Connection and Transmission of Measurement Data.
Product Parameters:

Cable Type	Size (Inches)	Max Temp (°F)	Breaking Strength (Ibs)	Working Tension (Ibs)	Weight In Air/Water (Ibs/Kft)	Arm Res (Ω/Kft)	Wire Break Strength (In/Out) (Ibs)
1N10RP	1/10	300°	1,000	500	19/15	22	42/42
1N12RZ	1/8	500°	1,600	800	29/24	13	65/65
1L18RP	3/16	300°	4,000	2,000	65/54	6.0	103/272
1L18RZ	3/16	500°	4,000	2,000	66/55	6.0	103/272
1N22PP	7/32	300°	5,600	2,800	93/77	4.4	215/215
1K22PXZ	7/32	420°	5,600	2,800	92/76	4.3	132/286
1N22PTZ	7/32	500°	5,600	2,800	96/90	4.4	215/215
1N25PP	1/4	300°	7,300	3,650	121/100	3.0	286/286
1N25PXZ	1/4	420°	7,300	3,650	124/101	3.0	286/286
1N25PTZ	1/4	500°	7,300	3,650	125/103	3.0	286/286
1N29PPEHS	9/32	300°	10,200	5,100	152/126	2.8	393/393
1N29PXZ-EHS	9/32	420°	10,200	5,100	155/128	2.8	393/393
1N29PTZ-EHS	9/32	500°	10,200	5,100	157/130	2.8	393/393
1N32PP	5/16	300°	12,000	6,000	187/155	2.1	442/442
1N32PXZ	5/16	420°	12,000	6,000	190/157	2.1	442/442
1N32PTZ	5/16	500°	12,000	6,000	194/160	2.1	442/442
3Q37RP	0.377	300°	13,200	6,600	233/192	1.7	383/469
4H18RPP	3/16	300°	3,100	1,550	60/49	6.7	73/130
4H18RPPSS	3/16	300°	2,600	1,300	61/50	6.7	63/132
7Q38RAZB	3/8	500°	13,100	6,550	256/211	1.8	286/494
7H42RZ-HS	7/16	500°	17,600	8,800	316/261	1.2	404/765
7J46RP	15/32	300°	19,100	9,550	321/265	1.3	357/575
7J46RXZ	15/32	420°	19,100	9,550	340/281	1.3	357/575
7J46RTZ	15/32	500°	19,100	9,550	341/382	1.3	357/575
7Q49RXZZ-E	0.49	420°	30,000	15,000	405/335	1.0	603/1095
7Q54CTZZ-LR-E	0.548	500°	40,000	20,000	532/440	0.79	1317/975
1N22SAS 75	7/32	500°	4,700	2,350	98/81	18.1	181/181
1N22SAS 77	7/32	500°	4,900	2,450	97/80	18.9	189/189
1N25WA-S75	1/4	500°	6,200	3,100	131/108	13.9	242/242
1N 25 WAS 77	1/4	500°	6,500	3,250	129/106	14.1	129/106
1N29WTZ-75	9/32	500°	7,800	3,900	161/133	11.2	302/302
1N29WTZ-77	9/32	500°	8,100	4,050	159/131	11.3	314/314
1N32WTZ-75	5/16	500°	9,700	4,850	201/166	9.0	373/373
1N32WTZ-77	5/16	500°	10,000	5,000	198/163	9.1	388/388
1N22WG	7/32	600°	5,600	2,800	97/80	4.4	215/215
1N32WG	5/16	600°	12,000	6,000	195/161	2.1	442/442
7J46SGG	15/32	600°	19,100	9,550	363/300	1.3	357/575

Company Profile
Henan Huadong Cable Co., Ltd. Is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced 20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
Packaging & Shipping
FAQ
1.How can I get the quotation of the products ?Pls send inquiry to us,we will reply you within 12 hours.2.What does your company do regarding quality control?1) all raw materials we selected are the highest quality.2) professional and skillful workers care every details in handling the producing.3) quality control department is specially responsible for quality checking in each process.3.Do you provide OEM project service?Yes,OEM & ODM order is warmly welcomed.Our technical engineers can give you the professional suggestions.4.Can I get the sample?Yes,pls send inquiry to us,then our sales manager will arrange the samples for you.
