EV Charging Station Prefabricated Substation with Oil Transformer 1000kVA ~ 3000kVA

Product Description

Company Profile Pearl Electric Co.,Ltd.(Hereinafter referred to as Pearl Electric) located in Panyu District, Guangzhou City, which is an enterprise mainly engaged in the R&D and manufacture of power transmission and transform.
Pearl Electric is the former state-owned Panyu Electrical Motor Factory established in 1958. To facilitate Company's development, the Company was formally renamed as Pearl Electric Co., Ltd. in January, 2010. Pearl Electric occupies a factory area of 10.5 hectares, with more than 7.2 hectares of modern factory building. Pearl Electric has more than 600 employees and more than 600 sets of specialized manufacturing equipment.
Pearl Electric is engaged in the research and development, production and operation of dry-type transformers of 35kV and below, combined transformers, prefabricated substations, reactors, oil-immersed power transformers of 220kV and below , transmission and distribution and Control equipment, etc. The annual output of transformers exceed 20 million kVA, and the pad-mounted products exceed 4000 sets.
Our company is committed to providing customers with safe, efficient and intelligent power transmission solutions, and has become a leading enterprise in the domestic nuclear power dry-type transformer and new energy box-type substation industry and a leading enterprise in the environmental protection and energy-saving transformer industry.

Annual Production Capability

Dry-type transformer	15,000MVA
Oil-immersed Distribution Transformer	18,000MVA
110kV &220kV Power Transformer	300 units
Substation Transformer	10,000 units

Certifications We have established a sound quality management system, and have passed the certification of ISO9001:2015 quality management system, ISO14001:2015 environmental management system, and ISO45001:2018 occupational health and safety management system.In order to ensure product quality and in order to meet the development and supply of our dry-type transformers in overseas international markets, we all participate in type and special tests of internationally recognized independent testing laboratories, and obtain relevant reports.
Partner
Packaging & Shipping

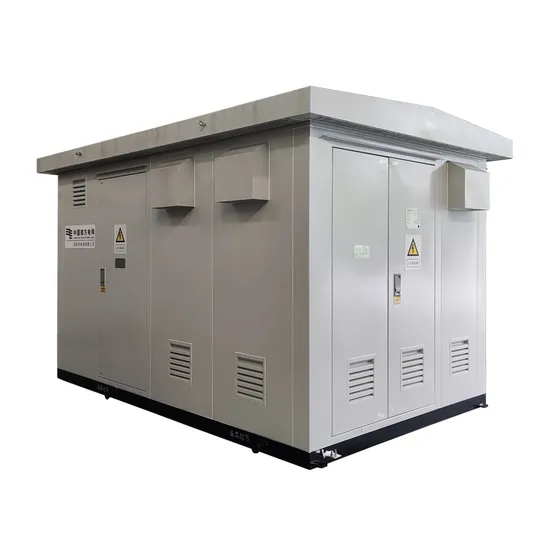

Product Display High-voltage/low-voltage prefabricated substation (European Compact Substaion transformer) is a complete set of power distribution equipment. It is composed of distribution equipment composed of high-voltage switchgear, distribution transformers, low-voltage switchgear, electric energy metering equipment, reactive power compensation equipment, auxiliary equipment and connecting parts. these components are pre-assembled in one or several casings to transfer electrical energy from the high-voltage system to the low-voltage system.
Pearl Electric European Compact Substaion transformer is a new generation of complete set of transformer and distribution products developed on the basis of absorbing the advantages of similar products at home and abroad. It is combining the actual needs of current co-distribution. This product has the advantages of compact structure, small footprint, safety and reliability, and convenient installation. It can penetrate deep into the load center and transfer with the load center. Therefore, this product is very suitable for construction sites, oil fields, ports, terminals, high-rise buildings, highways, subways, airports, residential areas and other places.

01	Production Descriptions			Prefabricated Substation Transformer
02	Reference standards			IEC 60076
03	Capacity			1000kVA
04	Voltage (HV)			13.8kV
05	Voltage (LV)			0.48kV
06	Applied in			EV Charging Station
07	Impedance %			4~8%
08	Connections (Vector Group)			Dyn11 or Yyn0 (Customized)
09	Frequency			50Hz/60Hz
10	Tapping Range			±2×2.5%, NLTC/OLTC
11	Core materials			Silicon Steel
12	Winding materials			Copper
13	Noise Level (dBA)			As per IEC Specifications

Pearl Electric's Technology Core:
Our transformer's core is made of high quality cold rolled grain oriented silicon steel sheet with high magnetic permeability. It is using full 45° slope lamination, so that the no-load loss and the no-load current are reduced efficiently. We use Simulating Analysis in the core model design, so that we can calculate the frequency and size of the vibration exactly and avoid the core cavity resonance. Between core & windings, and core & frame, we use spring connection. Then the noise is lower 10 to 15dB than the standard.
LV Winding: LV windings, above 400 kVA capacity, are adopting superior foil conductors, thus to obtain better amper-turn balance and reduce more transverse magnetic flux leakage. Then to greatly improves transformer's anti-short circuit capability. The wise design of air passage within the winding, greatly increasing the winding's heat dispersion effect. It helps to decrease temperature rise and improve products' overload capability.
HV Winding: HV windings are made of superior copper-conductor wires. Adopting fiberglass to reinforced insulation. The HV windings are casting under vacuum and high pressure conditions with Germany HUBERS vacuum Cast Machine. In this way, transformer's resin can get the best penetration. It can also greatly reduce its partial discharge (partial discharge for 11kV product could be lower than 5pC). HV windings are adopted optimized structure to improve transformer's distribution of electric field. We use our existing technology calculate and analysis Lightning wave process simulation. Then substantially improving product's anti-lighting capability.
