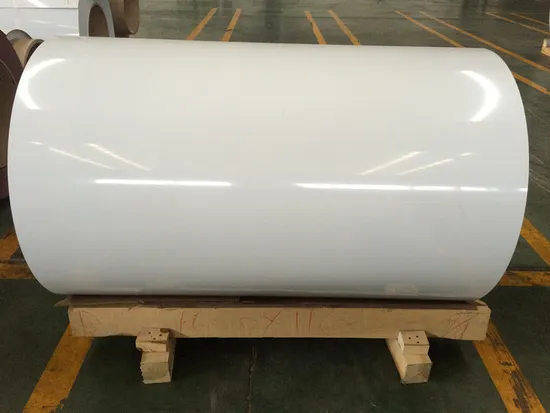

Pakistan Prepainted Galvanized Steel Sheet /PPGI Coil
| US$550.00-800.00 | 10 Tons (MOQ) |
Basic Info.
Model NO.
DX51D
Certification
AISI, ASTM, GB, JIS, RoHS, ISO9001
Base Metal
SPCC, Spcd, Secc, SGCC
Zinc Coating
30-100GSM
Thickness
0.2~0.9mm
Width
300-1360mm
Length
Steel Plate or in Coil(Custom Choice)
Surface Treatment
Coated
Top Coat Thickness
15-20um
Coil Weight
2-3ton
Hardness
3h-4h
Color Choice
White, Green, Black Ink
Type
Whiteboard
Usage
Teaching
Transport Package
Export Standard Package
Specification
In coils
Trademark
Alucosuper
Origin
Anhui, China
HS Code
72109000
Production Capacity
80000 Tons/Year
Packaging & Delivery
Package Size
107.00cm * 68.00cm * 69.00cm
Package Gross Weight
850.000kg
Product Description
Company ProfileIllustration
Illustration:
| Illustration | Atahickness | Type | Remark |
| 1. Protect layer | 50 μm | Polyethylene | To prevent damage |
| 2. Top | 5±2 μm | Arcylic | |
| 3. Primer | 15±2μm | Polyester | |
| 4. Chemical layer | 1μm | Chromium | |
| 5. Material | 0.2-0.9mm | SGCC, SECC | |
| 6. Back coaring | 5±2μm | PE paint |
Specifications:
| Product Name | PPGI |
| Color | RAL color, such as white, green, black |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Base Metal | Cold rolled steel (CR) Hot dip galvanized steel (SGCC) Electro-galvanized steel (SECC) Stainless steel, aluminum plate |
| Thickness of base metal | 0.3-1.2mm |
| Width | ≤1350mm , as per customer request |
| Paint Thickness | Top side :15-20 μm back side :5-8 μm |
| Surface Protection | PE protective film |
| Certificate | ISO9001, ISO14001, ROHS |
| Properties | (1) good formability and workability (2) various color choice, well decorative (3) excellent rust & corrosion resistance, salt spray resistance, high temperature resistance , chemical resistance (4) eco-friendly , meet with ROHS standard |
| Coil ID | 505 mm |
| MOQ | 10 MT or depends |
| Supply Ability | 1200 tons per month |
| Payment Term | T/T or L/C |
| Application | 1. Home Appliance :Refrigerator,freezer,washing machine,water heater,air conditioner,water dispenser,wine cabinet,microwave oven,toaster oven,rice cooker,range hood,computer casing,DVD player,TV back plate,set top box, kitchen appliance 2. Writing Board :White board,black board,green board,chalk board 3. Indoor Decoration :Security / fire-proof door,kitchen cabinet,wall panel,ceiling panel,lighting,curtain rod,dustbin,table,wardrobe,washroom accessories,hotel decoration,elevator cabin 4.Transportation :Ship/yacht interior decoration ,refrigerated truck 5. Medical device, cold room, and so on. |
Specification of Physical&Chemical Test:
| Test item | Method | Standard | Result |
| Film thickness | Electromagnetic thickness tester | Top 22±2μm | Average more than 20μm |
| Back 5±2μm | Average more than20μm | ||
| Gloss(Top) | 60 degree reflection | Standard 85 degree | 85±5 degree |
| Color difference | Minota delta color machine | Difference with standard sample | Difference ≤1 |
| Adhesion test | 100/100 | 95/100 | 95/100 |
| Pencil hardness | JIS K5400 | ≥3H | No scratch |
| Mek test | Rubbed with MEK on surface | No see the material | 80 times |
| Chemical | JIS K5400 | 5% H2SO4 24 Hr 5% HaoH 24 Hr | No change on the surface |
| Anti pollution | Red, blue, black ink | Easy clean | Easy clean |
>>>>> For the detailed parameters, please contact with our business representative, tks!
Contact: Jason
Website:alucosuper.en.made-in-china.com
NOTE:
The born of pre-painted metal sheet is a qualitative leap in the traditional painting process. It is widely
used because of its high-quality, like eco-friendly, low cost, high efficiency and fast switching color.
Using pre-painted metal sheet will effectively improve your marketing competition.
