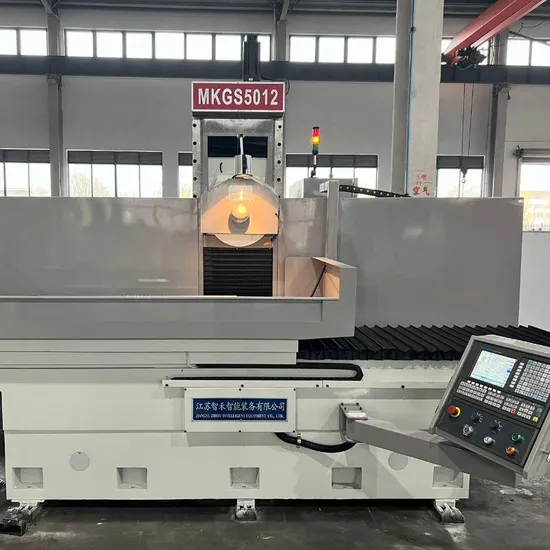

Mkgs5012 CNC Column Moving Automatic Surface Grinding Machine

Product Description

Surface Grinding Machine Introducing the Surface Grinding Machine from Jiangsu Zhihe Intelligent Equipment Co., Ltd. This machine features a tetrafluoroethylene soft belt on the worktable and saddle flat guideway for smooth operation. The combined guideway structure integrates the saddle, column, and roller for enhanced stability.
This is a kind of column moving type grinding machine with CNC control
It can be designed as 1 axis CNC control or 2 axis CNC control.

Paramenters		MKGS5012 CNC CONTROL TWO AXIS
Worktable surface	mm	500x1200
max table travel	mm	1300
max cross travel	mm	540
distance between table surface to spindle center	mm	590
max load	kgs	800
T-slots		3x16
table speed	m/min	8-25
cross feed handwheel 1 gard	mm	0.02
1 rev	mm	5
automatic crossfeed of saddle	mm	0.5-12
power cross feed 50HZ	mm/min	1250
60HZ	mm/min	1500
grinding wheel size	mm	355X40x127
Spindle speed 50HZ	RPM	1450
60HZ	RPM	1740
Vertical handwheel 1 gard	mm	0.002
1 rev	mm	0.05
automatic down feed rate	mm	-/0.005~0.04
power head increment	mm/min	230
spindle motor	kw	7.5
vertical motor	w	370
hydraulic motor	kw	2.2
dust collection motor	w	550
coolant motor	w	90
crossfeed motor	w	370
floor space	mm	4450x2200
package size	mm	3390X2255X2225
NET weight	kgs	5000
Cross weight	kgs	6000
