High Capacity Economic Type Extruder Machine

Product Description

High Power Plastic Machinery

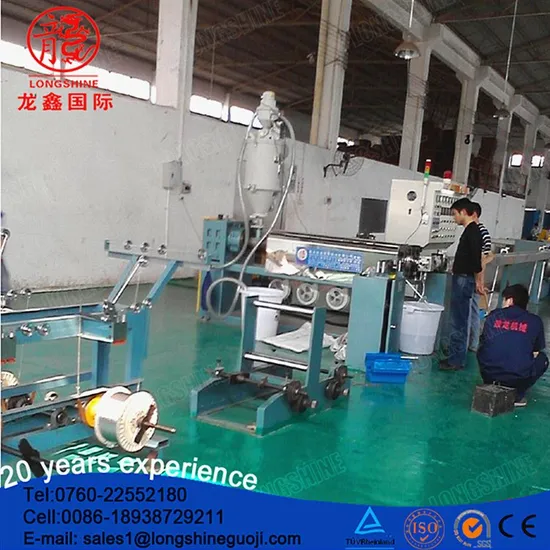

Electric cable, power cable, flat cable extrusion line
Application:
The machine are mainly used in manufacturing insulation of Cat5, 5e, 6 Lan cable with polyolefin and various UL hook-up wires with PVC. The machine consts of pay-off, drawning, main extruder, control cabinet, printer, coiling trough, accumulator, capstan, take-up etc. The single/double reel pay-off, PLC control system, laser diameter gauge, core.

Machine model	LS-35	LS-50	LS-60	LS-70	LS-80
Pay-off type	active pay-off	shape headed pay-off	shape headed pay-off	shape headed pay-off	shape headed pay-off/ big bobbin pay-off
Screw diameter	Φ35mm	Φ50mm	Φ60mm	Φ70mm	Φ80mm
Screw length/diameter	26:1(double thread)	25:1	25:1	25:1	24:1
Extrusions capacity kg/hr	40	70	100	130	180
Main machine motor power	7.5HP	15HP	25HP	30HP	40HP
Wire diameter(mm)	Φ0.3-3	Φ0.6-5	Φ1-8	Φ2-15	Φ3-25
Temperature control zone	5 zone	6 zone	6 zone	7 zone	8 zone
Cooling system	3 group	3 group	3 group	5 group	5 group
Capstan power	2.25HP	3HP	4HP	4HP	5.5HP
Accumulator type	inclines way/level way holizo
Accumulator capacity(m)	200	250	250	200	180
Take-up line type	Dual spools
Electrical control	Controlled inverter+PLC entire joumey control(may choose the use)

LongShine zhenglong heavy Machinery Co., Ltd. covers an area of nearly 6000 square meters adjacent to Zhongshan Xiaolan, the capital of small household appliances in the world. It is located in Zhongshan Xiaolan, a high grade hardware intelligent lock R & D and manufacturing town. The company has more than 50 invention patents more than 20 design and research team, and more than 20 years of manufacturing R & D experience.
plastic extruder for LED rope light
Feature:
The machine consts of Pay-off, drawning, main extruder, control cabinet, printer, coiling trough, accumulator, capstan, take-up etc. The single/double reel pay-off, PLC control system, laser diameter gauge, core.

Machine model	LS-80
Pay-off type	shape headed/big bobbin wire pay-off
Screw diameter	Φ80mm
Screw length/diameter	24:1
Extrusions capacity kg/hr	180
Main machine motor power	40HP
Wire diameter(mm)	Φ3-25
Temperature control zone	8 zones
Cooling system	5 groups
Capstan power	5.5HP
Accumulator type	inclines way/level way holizo
Accumulator capacity (m)	180
Take-up line type	Dual spools
Electrical control	Controlled inverter+PLC entire joumey control (may choose the use)

1.Eliminate static electricity,wire straightening device: 380V ,50HZ, 22KW.
2.Main engine:Process precision power saving control system+Whole precision automatic temperature control electronic control box +linkage control system

Type	Voltage	frequency	power	output
LS-2	380V	50HZ	0.75KW	1000 meters/hour

3.Product mould: A set of molds + Precision power saving and durability,aluminum heating,molding device for plastic products

4.Cooling:Stainless steel cooling tank +sink installation
5.Closing line:raction device for continuous extrusion process of precision stable products
6.Packaging and transportation:wooden frame protection
7.Enterprise staff style: Some Senior Engineers
After Sale Service:

We will offer the Comprehensive pre-sale and after-sale service FOR FREE,Including as below:
1.Cost/Production Accounting
2.Site Planning
3.All requirement equipment technical support
4.on-site installation /equipment debugging/technical training services
5.Guide the plant establishment and production
Specifications
1. Latest process technology
2. Stable extruding.
3. Make more profit product
4.CE
Any question,welcome send an inquiry to the blank as blow!
