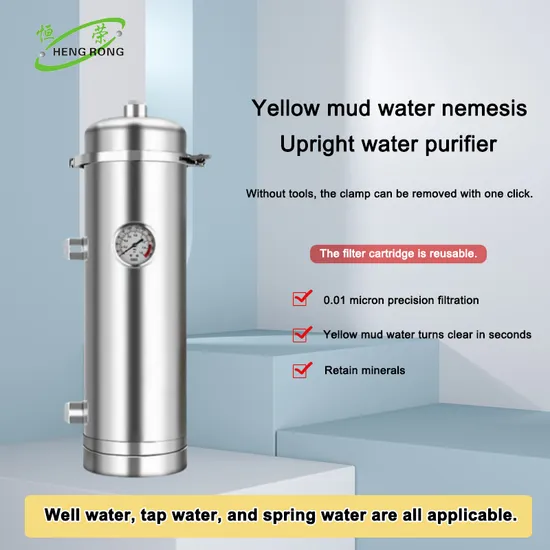

Stainless Steel Precision Filter Industry Clamp Quick Open Side Inlet

Product Description

Product Description Product Introduction:
Security filters, also known as precision filters, are typically placed before pressure vessels to remove fine particles with a turbidity of over1 degree, in order to meet the water quality requirements of subsequent processes. Sometimes they are also placed at the end of the entire water treatment system to prevent fine (such as broken resin) from entering the finished water.
During filtration, the filter cartridge captures particles of different sizes according to the different densities of the filter medium, so the entire thickness of the filter medium layer plays a role in capturing particles.
The deep-bed filter cartridge, due to its graded density structure, possesses the to handle contaminant loads and filtration performance. It can intercept larger particles on the surface of the filter medium while capturing finer particles with increasingly dense layers of the filter.
Working principle:
The housing is made of stainless steel, and the filter cartridge is made of formed filter materials (polypropylene fiber melt-blown or woundcomb). Under the action of pressure, the original liquid passes through the filter material, leaving the filter residue on the filter material and allowing the filtered liquid to flow. This effectively removes impurities, sediment, and suspended solids, as well as bacteria, thus achieving the purpose of filtration.
Application range:
Precision filters are used pure water equipment, pharmaceuticals, beverages, boiler water, liquid chemicals, and other fields.
Detailed Photos
Product Parameters Main Technical Parameters:
1. Working Pressure: 0.05MPa~0.6MPa
2. Temperature: 5~40ºC
3. Filter Cartridge Connection: Flat Press, Insertion
4. Housing and Base Connection Quick Open, Flange
5. Filtration Accuracy: 1μm~100μm
6. Number of Cartridges: 1~180
7. Filter Cartridge Length: 10″~40″
8. Housing: SS304, 316L

Model	Size	Import and export diameter	Flow rate(T)	Thickness(mm)	pressure-bearing
3*10 inches	Ф170*445	DN25	0.9	1.2	0.8Mpa
3*20 inches	Ф170*690	DN25	2.1	1.2	0.8Mpa
5*10 inches	Ф200*455	DN25-32-40	1.5	1.2	0.8Mpa
5*20 inches	Ф200*690	DN25-32-40	3.5	1.2	0.8Mpa
5*30 inches	Ф200*945	DN25-32-40	5	1.2	0.8Mpa
5*40 inches	Ф200*1200	DN25-32-40	7.5	1.2	0.8Mpa
7*20 inches	Ф230*690	DN50	4.9	1.2	0.8Mpa
7*30 inches	Ф230*945	DN50	7	1.2	0.8Mpa
7*40 inches	Ф230*1200	DN50	10.5	1.2	0.8Mpa

Customizable according to customer requirements, the selection is for reference only. Company Profile At Hengrong Water Treatment, we pride ourselves as pioneers in the realm of stainless steel and carbon steel water treatment equipment accessories. Our esteemed position in the industry is backed by a suite of cutting-edge production equipment and proprietary technology, which ensure our technical supremacy. Our commitment to excellence propels us far ahead in the competitive landscape.
Our diverse product portfolio includes a comprehensive array of precision filters, sand carbon filters, softening tanks, RO membrane shells, aseptic water tanks, mixing beds, ion exchangers, ozone mixing towers, and specialized filters for iron and manganese. Additionally, we offer ultraviolet sterilizers, flow-stabilizing tanks, reverse osmosis pure water systems, nanofiltration pure water systems, integrated water purification, and sewage equipment among others.
Hengrong stands tall as a leading environmental protection enterprise in China, excelling in the high-tech manufacture of water treatment equipment and accessories. Our unmatched suite of first-class production equipment, combined with the cutting-edge domestic argon arc welding technology, allows us to offer impeccable quality. Our team of highly skilled technical personnel ensures that we deliver exceptional service to our clients. We are deeply immersed in the domains of domestic drinking water, food-purified water, pharmaceutical ultra-pure water, and more. Our expertise spans from pipeline direct drinking water, reclaimed water reuse, non-negative pressure water supply to integrated purification and sewage treatment systems. We provide comprehensive solutions in investment, engineering, operation management, and design for a plethora of water projects.
With vast experience in large-scale drinking water systems, reclaimed water, and sewage treatment projects, Hengrong adeptly supports governments, developers, and various institutions. We specialize in establishing operational management systems and building competent management and operation teams while offering enduring technical support. As we forge ahead, Shenzhen Hengrong Water Treatment Company remains committed to leveraging its exceptional quality, service, technology, and reputation. We proudly uphold the 'Four first-class' principles-quality, service, technology, and reputation-while continuously innovating and expanding our business. Our vision is to collaboratively craft a cleaner, more beautiful world through water treatment, serving the community with unwavering dedication and a 'Persevering attitude, thriving development' mindset.
Our Advantages
1. Punctual delivery paired with thoughtful, considerate after-sales service. 2. Extensive multi-year quality warranty coupled with bespoke OEM services. 3. Exemplary craftsmanship ensured by rigorous 100% product testing. 4. Advantageous freight options via renowned shipping companies. 5. Innovative designs featuring highly sought-after styles tailored for your local market.
FAQ 1.Questions: Are you a trading company or a manufacturer?Answers: We are a manufacturer specializing in the production and installation of sewage treatment equipment, water purification equipment, and water treatment accessories.
2.Questions: How long is the warranty period for your equipment?
Answers: Our equipment has a warranty period of one year.3.Questions: Do you have any after-sales service work?Answers: We provide professional installation guidance and after-sales service.4.Questions: How do you usually package and transport your goods?Answers: Our equipment is usually shipped by container to the nearest port adjacent to the receiving address.5.Questions: Do you accept device customization?Answers: We accept customized services and can customize production equipment according to the requirements you provide.
