Sensor of Sliding Gate Opener

Product Description

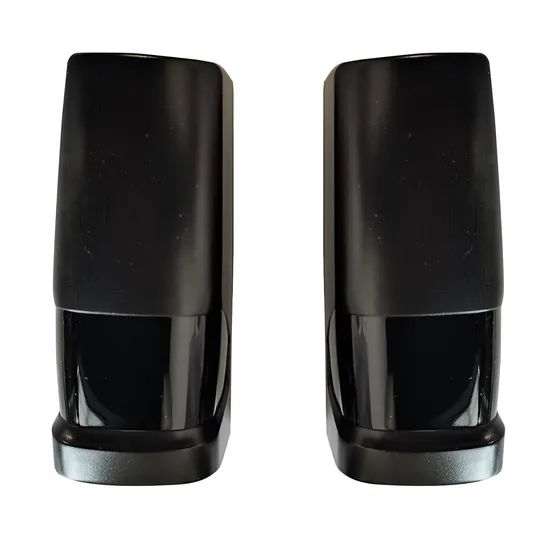

Sensor of Sliding Gate Opener
Product IntroductionFor this kind of infrared photocell sensor , you needn't connect wires between transmitter and receiver of sliding gate opener sensor, more convenient for customer to connecting, because there is with batteries in the package, it can get power from the batteries.
Technical Parameters

Working voltage	12-28V AC 12-33V DC
Working current(24VDC)	Emitter:≤8mA receiver:≤30mA
Photocell wavelength	940mm
Angle of opposite emission	≤±5°
Working temperature	-20ºC~+60ºC
Relay contact loading capacity	1A/30VDC
Size	100*40*35mm

NoteFor security,please read the user manual carefully before initial operation.
This photocell is without any fuse,so please make sure the power is off before installation.
Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated.
Please gurrantee teh products used in effective working range.
