Advanced Vacuum Loaders for Laser Material Feeding: Precision and Labor-Saving

Product Description

Air Type Vacuum lifter descriptionThe Vacuum lifter plate suction crane is specially used for various plate processing and is suitable for loading and unloading of various processing machines. It has long-term cooperation with international and domestic laser cutting machine manufacturers.

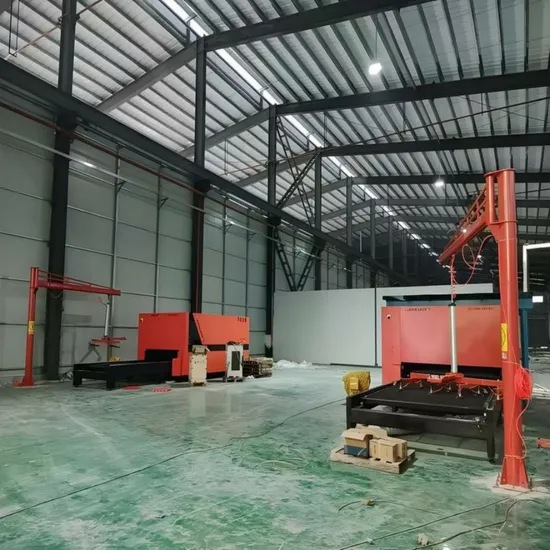

1, Laser cutting machine, plasma cutting machine, shearing machine loading and unloading
2, Suitable for aluminum plate and stainless steel plate
3, Imported vacuum pumps and valves
4, Maximum load 2000KG
5, Accumulator and pressure detection ensure safety
6, Various structures and suction cup supply configurations
7, Applicable to ceilings below 400 degrees
8, The company passed IOS9001 and the products passed CE certification
*Real materials, safe and convenient, quality assurance, after-sales service, fast delivery, processing and customization*High stability, simple operation, no need for electricity: using the pneumatic power-assisted principle, only need to control the button to complete the handling process of the workpiece
Products Specification: (support customerized size)

Product Model :	XDL-100B3M
Jib Column Size :	3300x219x6mm
Rokcer Beam Size:	4000x22mm
Suction Cup Equipment Size:	2000x1000mm
Cylinder Size:	1000x125mm
Color :	Red/Orange/Blue/White etc
Working Area:	0~3200mm
Stroke Lifter:	1100mm
Rocker Arm Rotation:	0~270°
Max Steel Plate Size:	1500mm*3000mm/4000x2000mm(customerized size)
Application:	Steel plate/aluminum plate/plastic plate/glass plate/stone plate/laminated particle board Moving and Lifting

Pneumatic Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Strok	Capacity	Max Workpieces	Air Pressure	Suction Pad (pcs/dia)
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L100-B4M	3300mm	4000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B4M	3300mm	4000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm

*High efficiency and short handling cycle: When loading materials, the operator can control the movement of the bow and arrow in space with less force, and can stop at any position.*Air cutoff protection, safety guarantee: When the air source is suddenly interrupted, the plate will remain in the original position for a period of time without falling, making it easier for the operator to remove the plate.*Quality assurance: The main components are produced by internationally renowned brands, and the quality is guaranteed by SGS and Certificate.
Our Machine Advantages :
*Professional and experienced Manufacturer Manufacturer specializing in the production, development and production of laser cutting machines, plasma cutting machines and shearing machines for loading and unloading in China. *Various styles, used in different working scenarios 1,The product can be loaded with aluminum plates, stainless steel plates, wooden boards, glass, marble tiles and other flat plates.
2,A variety of structures and suction cups are available for configuration.

Debugging of pneumatic rocker arm loading machine 1,Adjust the air pressure to about 0.6-0.8MPa. The pressure gauge is located on the pressure reducing valve. The automatic drainage valve in the lower part of the oil-water separation cup will automatically drain water when the pressure is low. 2,Toggle the [rise and fall] toggle switch on the control box, which can make the lifting cylinder rise and fall. The lifting and descending speed of the lifting cylinder can be adjusted by adjusting the adjusting screw on the lifting cylinder gas pipe joint. The adjusting screw at the upper end of the lifting cylinder controls the rising speed of the lifting cylinder, and the screw at the lower end of the lifting cylinder controls the falling speed.

3, moving the sucker group test suction plate. Move the sucker set to the plate, flip the [suction] switch, and check whether the pressure of the vacuum pressure gauge can reach -0.04MPa. If the pressure is lower than -0.04MPa, check whether the pipeline and switch are leaking. If the value is higher than this, it can be used normally. .
Regarding to XINDELONG Machinery factory Founded in 2021, Xindelong Machinery is the leading manufacturer of vacuum conveying technology, production auxiliary equipment and stamping peripheral equipment, and is committed to providing production solutions for industrial workshops. Our product line includes vacuum conveying technology such as glass vacuum lifting, standard lifting, electric lifting and other standard or custom equipment, widely used in sheet metal, stone, wood, plastics and other fields; Stamping peripheral auxiliary equipment, such as automatic feeding, transmission, etc., is widely used in laser, sheet metal and other related industries. Since the establishment of the company, through pragmatic, unremitting efforts; With high quality service and competitive price, the products are exported to the Middle East, Southeast Asia, Eastern Europe and other countries.
.
