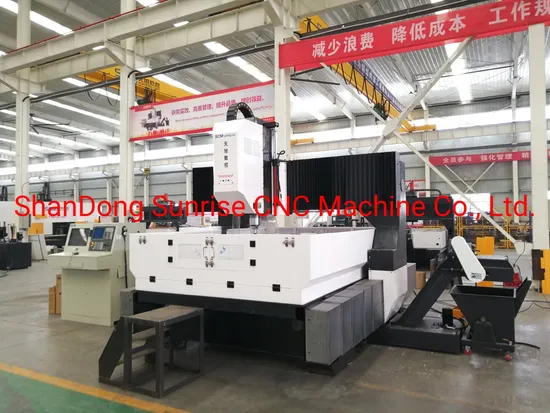

TPHD2016F High Speed CNC Drilling Machine for Rails

Product Description

Applicable Industry: This machine is mainly used for drilling and milling of steel plate in the steel structure industry such as building, bridge, iron tower, etc., and can also be used for drilling and light milling of tube plate, baffle plate and circular flange in boiler and petrochemical industry. It is used for drilling through hole, blind hole, ladder hole, chamfering and milling. Maximum processing range is 2000 x 1600mm.

Specification:

Items	Model	Parameters
Max work piece size	Long*Width	2000X1600mm
Thickness of work piece		100mm
Working table	Width of T-slot	22mm
Slide way drill head	Quantity	one
	Spindle taper	BT50
	Max drilling diameter	Φ50
	Max drilling depth	≤5D
	Rotating speed	30-3000r/min
	Motor power	22kW
	Distance from spindle end to work table	200-500mm
Gantry vertical moving direction (x-axis)	Max stroke	2000mm
	Moving speed of x-axis	0-10m/min
Drilling head moving direction (y-axis)	Max stroke of drill head	1600mm
	Moving speed of y-axis	0-10m/min
Sliding vertical feeding moving direction (z axis)	Max stroke of z-axis	300mm
Tool magazine	Quantity and tools	1set
Position precision	x-axis	0.08mm/Total length
	y-axis	0.08mm/ Total length
Reposition precision	x-axis	0.04mm
	y-axis	0.04mm
Hydraulic system	Hydraulic pump pressure	6MPa
Pneumatic system	Compressed air supply pressure	≥0.5MPa
Scraping and Cooling	Scraping type	Plate chain
	Scraping quantities	one
	Scraping speed	1m/min
	Inside cooling	High pressure water-cooling
	Outside cooling	Water-cooling
Automatic lubricating system	Lubricating pressure	2MPa
	Oil amount of lubrication point	0.1mL
	Lubricating period	6-10min
Electric system	CNC system	SIEMENS 808D
	CNC axis quantity	3
Total power		About 37kW
Overall size	L*W*H	About 4.5*3.9*3m
Weight	About 14.5t
