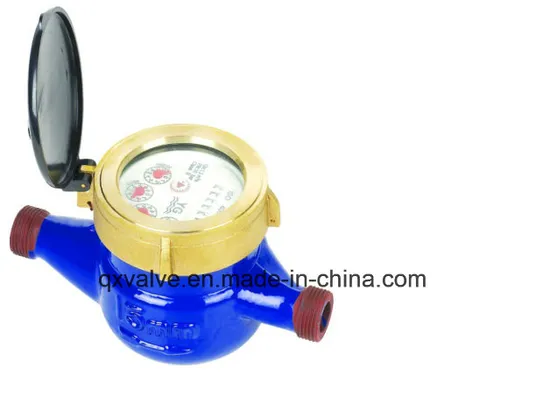

High Quality Brass Water Meter Class B with Brass Connector
| US$12.00 | 200 Pieces (MOQ) |
Basic Info.
Model NO.
QX
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Industrial, Household
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Wireless Communicating
Feature
Total Brass Material
Transport Package
Inside Box, and Export Cartons
Specification
15mm to 50mm, 1/2" to 2"
Trademark
QX
Origin
China(Mainland)
HS Code
00000000
Production Capacity
200000 Piece/Pieces Per Month
Product Description
| 1,Description |
| This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline. Compliance with standard: ISO 4064 Class B |
•Dry-dial
•Multi-jet
•Sensitive&Reliable
•Measuring accuracy conform to ISO 4064 Class B Standard.
•Universal use
3, MAIN TECHNICAL DATA
| Meter size Dia DN (mm) | Class | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | |||||
| 32 | A | 12 | 6.0 | 600 | 240 | 0.0001 | 99999 |
| B | 480 | 120 | |||||
| 40 | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
| B | 800 | 200 | |||||
| 50 | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
| B | 3000 | 450 | |||||
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | L length | B Width | H Height | Connecting Thread D | Weight kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G3/4"B | 1.5 |
| 20 | 190 | 99 | 106 | G1"B | 1.7 |
| 25 | 225 | 104 | 120 | G11/4"B | 2.4 |
| 32 | 230 | 104 | 120 | G11/2"B | 2.7 |
| 40 | 245 | 125 | 155 | G2"B | 4.5 |
| 50 | 300 | 125 | 155 | G21/2"B | 7.2 |
| 280 | 165 | 175 | GB4216.4 D=165 D1=125 Flange connecting conform to GB4216.4 D=165 D1=125 | 14 | |
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt)
5, DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | L length | B Width | H Height | Connecting Thread D | Weight kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G3/4"B | 1.5 |
| 20 | 190 | 99 | 106 | G1"B | 1.7 |
| 25 | 225 | 104 | 120 | G11/4"B | 2.4 |
| 32 | 230 | 104 | 120 | G11/2"B | 2.7 |
| 40 | 245 | 125 | 155 | G2"B | 4.5 |
| 50 | 300 | 125 | 155 | G21/2"B | 7.2 |
| 280 | 165 | 175 | GB4216.4 D=165 D1=125 Flange connecting conform to GB4216.4 D=165 D1=125 | ||
6,Working condition: Cold Water temperature ≤50°C
Hot Water temperature ≤90°C
Working pressure≤1Mpa
7,CONTACT US: THANK YOU VERY MUCH!
