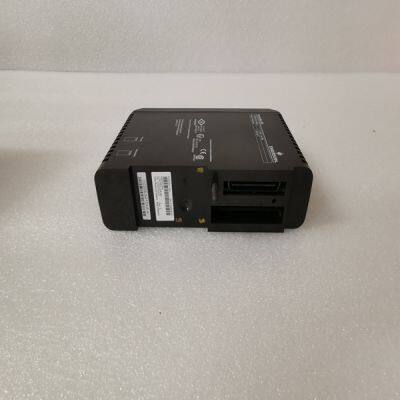

VE3007 KJ2005X1-BA1 12P4375X012

Product Details

Product Description

Product Description
Brand: EMERSON
Type:VE3007 KJ2005X1-BA1 12P4375X012
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Analog Reads (Input Registers) Input registers are analog values that are readable from, but not writable to, the 505E control. An example of an analog read value would be turbine speed. The values of the input registers are stored internal to the control as floating point numbers representing engineering units (i.e. KPA or RPM). The values that are transmitted are integer values ranging from -32767 to +32767. Since Modbus can only handle integers, values that require a decimal point must be multiplied by a scaling constant in the 505E before being sent across the Modbus link. For example, these input registers may be listed as the Modbus value ‘x100’ or ‘cascade scale factor’ under the description heading to denote the value is multiplied by a scaling constant (refer to Modbus Scale Factors later in this section). This will allow transmission of decimal parts of a unit if this is necessary for better resolution. See the 505E Service mode for defaulted communication constants and ranges. The 505E control supports Modbus function code 4, which involves reading selected input registers. The input registers available are listed in Table 6-7.
Analog Writes (Holding Registers) Holding registers are analog values that are writable to the 505E control. These values can also be read from by a device performing error checking. An example of an analog write value would be a direct speed setpoint value as opposed to raise and lower setpoint commands. The value of the holding registers are also stored in the control as numbers representing engineering units (i.e. PSI or RPM). Once again, if decimal points are required, a scaling factor must be used (refer to Modbus Scale Factors later in this section). The 505E control supports Modbus function codes 3, 6, and 16. These correspond to reading selected holding registers, writing to a single holding register, and writing to multiple holding registers, respectively. The holding registers available are listed in Table 6-8. The following tables give the address and description of all Boolean and analog, reads and writes. ADDR DESCRIPTION 0:0001 Emergency Shutdown 0:0002 Emerg Shutdown Acknowledge 0:0003 Controlled Shutdown 0:0004 Abort Controlled Shutdown 0:0005 System Reset 0:0006 Start/Run 0:0007 Open HP Valve Limiter 0:0008 Close HP Valve Limiter 0:0009 Lower Speed Setpoint 0:0010 Raise Speed Setpoint 0:0011 Go To Rated (Idle/Rated) 0:0012 Go To Idle (Idle/Rated) 0:0013 Halt Auto Start Sequence 0:0014 Continue Auto Start Sequence 0:0015 Enable Rmt Speed Setpt 0:0016 Disable Rmt Speed Setpt 0:0017 Go To Modbus Entered Speed Setpt 0:0018 Spare 0:0019 Arm Frequency Control 0:0020 Disarm Frequency Control 0:0021 Sync Enable 0:0022 Sync Disable 0:0023 Enable Cascade Control 0:0024 Disable Cascade Control 0:0025 Lower Cascade Setpoint 0:0026 Raise Cascade Setpoint 0:0027 Enable Rmt Cascade Setpt 0:0028 Disable Rmt Cascade Setpt 0:0029 Go To Modbus Entered Casc Setpt 0:0030 Spare 0:0031 Enable Aux Control (Aux controller only) 0:0032 Disable Aux Control (Aux controller only) 0:0033 Lower Aux Setpoint 0:0034 Raise Aux Setpoint 0:0035 Enable Rmt Aux Setpt Control 0:0036 Disable Rmt Aux Setpt Control 0:0037 Go to Modbus Entered Aux Setpt 0:0038 Spare 0:0039 Select Remote Ctrl (Remote/Local)
