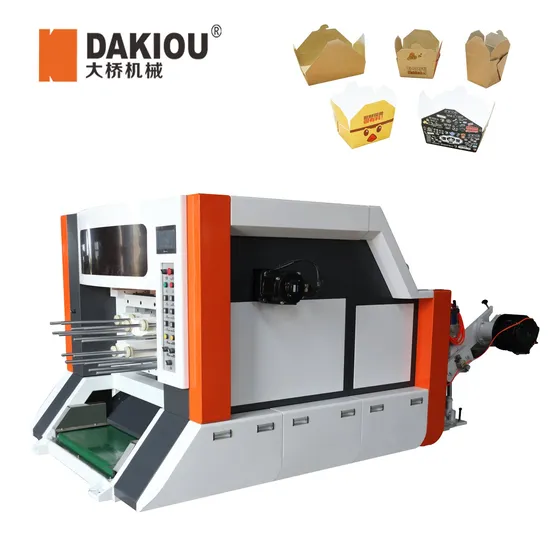

Fast Speed Automatic Popular Paper Cup Fan Card Roll Die Cutting Machine

Product Description

JTCQ-D Roll automatic punching machine is a good choice for punching and die cutting paper cup fan with different size by changing molds, high speed and good performance with stripping. It is the best associated equipment for flexo printing machine.
Technical Specification

Type	JTCQ-D high speed
Cut Precision:	± 0.10mm
Production capacity	Metal die made in Germany/Switzerland: 300-380 times/min / / Metal die made in China: 200-240 times/min/
Metal die life	Metal die made in Germany/Switzerland: 600.000.000 times /:6000 Metal die made in China: 200.000.000.times :2000
Max die cutting size	850*350mm;1150×350mm(optional)
Suitable Material:	120-450g/m2 PE coated paper, white cardboard paper,
Total Power:	9KW
Total Weight:	3580KGS
Overall Dimension:	3200 x 1800 x 1600 mm
Working Air Source:	Air pressure 0.4-0.5Mpa

The advantages of new type
JTCQ-D Roll automatic The center gravity of rubber roller move forward to stabilize the machine structure, and shorten the distance of feeding paper. That minimizes jitter; makes sure paper feeding stable and fast. The front rubber roller adjusts the balance of paper in horizontal direction.3.Instead of two links, new type die punching machine adopts four links. The metal die connected by four joints, the support force enhanced. It prolongs machine life, improves the stability; and significantly reduces the noise when machine is running. 4.Automatic oil injection system. It can be set by two hours one time, to reduce the machine abrasion, prolong machine life.
Metal die 1.Paper plate metal die
2. Paper cup 9oz
3. Paper cup 12oz
FAQ:
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins,from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs.We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
