High Speed 140-160PCS/Min Paper Cup Forming Machine

Product Description

Product Description
XZT-130 features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market with almost gear/ chain transmission and cam design paper cup machines it provides flexibility, speed, affordable capital cost, and low maintenance.
Unlike the traditional form of mechanical linkage: a small problem of one linkage mechanism can cause serious parts damage, requiring extremely high maintenance cost and technology; each motor of our machine is running independently, when encountering force, the motor will automatically unload, the machine will alarm and automatically stop to avoid damage to other parts. After the automatic stop, we only need to restart the machine and then press the initialization button, each motor will be initialized and can be put into production again. Adopts crankshaft and servo motor control instead of traditional cam transmission, no oil lubricant, which solved the negative effects of cam and bearing wearing and impacting while the machine running at high speed. This breaks through the traditional paper cup machine must use a cam to control the lifting and time.
XZT-130 changed the working procedure of bottom sealing. First Leister hot air preheats the cup body, then the cup bottom paper comes. This procedure makes fast sealing while the hot and cold paper touched each other. Then the second Leister hot air heats the bottom to go next knurling process. It makes the paper cup bottom seal more firmly while the machine runs at high speed. The traditional paper cup machine does the double bottom heating after the bottom paper come to the cup body. XZT-130 new design makes the bottom knurling much better.
Product Parameters

MODEL	XZT-130
Cup size	4-16oz(100-450ml) (can change mold for different sizes)
Material	170-380GSM single or double PE/PLA coated paper (0.25-0.5mm thickness)
speed	130-150pcs/min
Power Supply	220/ 380V 50Hz.34KW (running consumption is 14KW)
Air Supply	0.6Mpa (running consumption is 0.3Nm3/min
Weight	3000kgs
Dimension	2460L*1620W*1780H

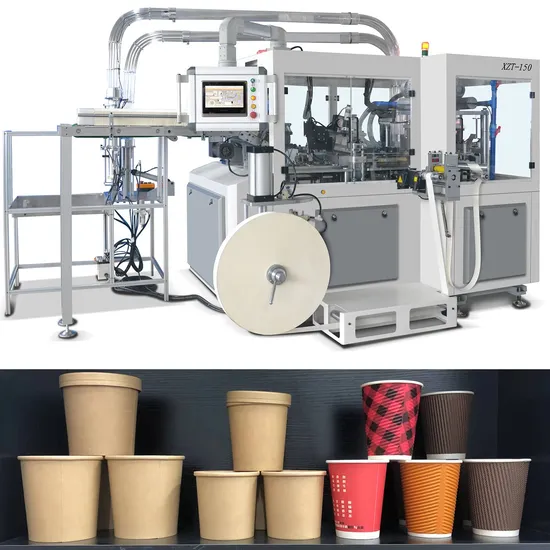

Detailed Photos
Sample Show
Packaging & Shipping

Company Profile Wenzhou New Smart Machinery Co., Ltd was founded in 2020. We are a technical innovation enterprise that focuses on paper container forming machinery R&D and production. Our engineers have more than 20 years of experience in the paper container-forming machinery manufacturing field. Company founder Mr. Jin Haixiao, also our senior engineer, has rich experience in mechanical design concepts to machine commissioning.New Smart first generation XZT-150 high-speed paper cup machine, has several technical barriers which break traditional machinery technology. We dare to use advanced technology instead of traditional technology and keep innovating for the revolution of industry technology.
FAQ Q1- Is your company a factory or a trading company?A1- We are a factory with more than 20 years of technical experience. Q2- Where is your factory? How can I visit your company?A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.Q3- What is the suitable material for your machines? What size of cup/bowl you can make?A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines. We can make paper cups/bowls from 4oz-57oz.Q4-What kind of machines do you produce?A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine. Q5- What certificates of machine do you haveA5- CE, and more than 10 pieces of Patent of the machine.Q6- What about the payment term?A6- 30%T/T in advance, the rest paid before shipment.Q7- What information should I let you know if I want to get a quotation?A7- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.
