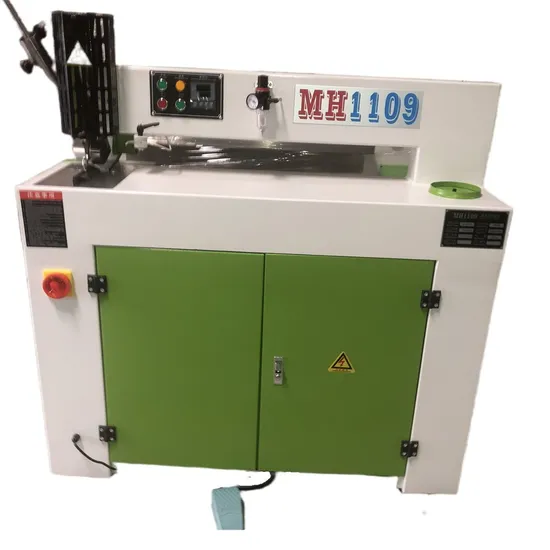

Veneer Jointer for Woodworking Plywood Splicing
Basic Info.
Model NO.
veneer jointing machine
Power Type
Electrical
Voltage
380V
Function
Veneer Joint
Core Compnents
PLC,Engine
Transport Package
Woodencase
Specification
1270*480*1500mm
Trademark
Langborden
Origin
China
Production Capacity
50000
Product Description
Extremely fast - perfectly suiting the industry.Zig-Zag Veneer Splicing Machine for bigger quantities.
LANG BORDEN Veneer Stitching machine 1114( Veneer Splicing Machine) The LANG BORDEN Veneer Stitching machine( Veneer Splicing Machine) splices veneers at a racingly fast feed speed of up to 50 m/min. A special LANG BORDEN glue thread is applied via a heating tube in a zig-zag or wavy line pattern. This ensures tight joints, strong adhesion and tear resistance even on very wavy veneers.
LANG BORDEN Veneer Stitching machine( Veneer Splicing Machine) - fast & precise
NEW: Customized User Interface - intuitive work
etremely fast and precise - ideal for industrial production
user friendly PL-Control
tight joints, strong adhesion and tear resistance are guaranteed, also for extremely wavy veneers
Advantages at a glance touchpanel to control the main functions: heating power in standstill and operating mode pneumatical lifting of the glueing head disc drive with tolerance compensating mechanism start function via optical light sensor pneumatically driven thread break-off roller maintenance friendly
1114 Technical parameters :
1400 mm depth entrance
Apply dried 0.3 - 5 mm thickness
Feeding speed of 60m/min
Feeding motor power 0.18kw
Fever of 0.5kw power
Working pressure of 0.2 MPa
Dimensions (length x width x height) (2450*750*1550mm)
Weighing 600kg
