Compact Sized 08 10 12 Mini Diggers for The Operation in Confined Spaces Like Indoor Orchard Greenhouse Poultry Farm etc.

Product Description

This machine is our company,'s best-selling model. It is smallflexible, easy to operate, and can work in a narrow field. It is also suitable for planting, trenching, fertilizing and weeding inorchards
Compared with the traditional 1 ton small excavator, it has many additional advantages

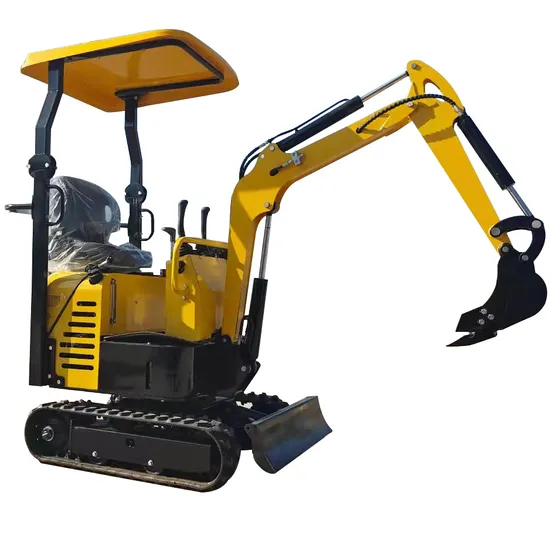

KA10 mini excavator
1. Thick counterweight, more stable
2. The heat dissipation system is added, and the heat dissipation is started with one button
3. The original 5-liter fuel tank was removed and replaced with an 11-liter fuel tank, which doubled the continuous working time
4. Use hydraulic tensioning device instead of screw tensioning
5. The hood is covered with high temperature heat insulation and sound insulation cotton, effectively reducing noise and shell heat
6. Concealed oil pipes, both internal and external oil pipes are wrapped with sheath, more effectively protecting the oil pipe from damage

KA10 MINI EXCAVATOR
WEIGHT	900KG	Engine brand	koop/B&S/Kubota
SIZE	2200mm*930mm*2250mm	Engine model	192F/XR2100/D722
Max digging radius	2900mm	Output power	8.2kw/9.8kw/11.8kw
Max digging depth	1630mm	Walking speed	0~1.8km/h
Max digging height	2750mm	Gradeability	30%
Max dumping height	1960mm
Min ground clearance	385mm
