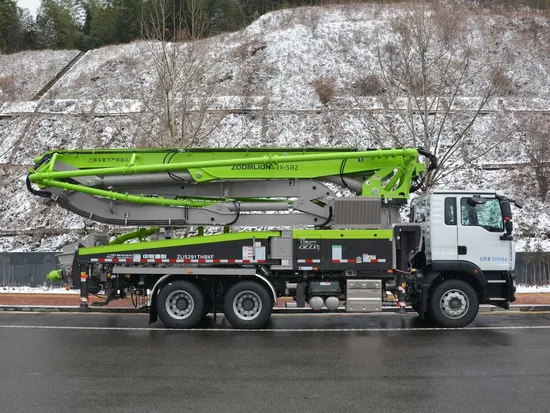

Zoomlion Zlj5291thbkf 43X-5rz 43m Four-Axles Truck Mounted Concrete Pump
Basic Info.
Model NO.
43X-5RZ
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
140/90 M3/H
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Maximum Vertical Reach
43m
Maximum Horizontal Reach
39m
Maximum Depth Reach
30.5m
Minimum Unfolding Height
9.1m
Section Numbers
5
Boom Type
Rz
Pipeline Diameter
125mm
Maximum Theorical Output
140/90m3/H
Maximum Theorical Pressure on Concrete
70/110bar
Concrete Cylinders (Diam.*Stroke)
230mm X 2100mm
Hydraulic Circuit
Open
Transport Package
Comply with Export Packaging Requirements
Specification
10975*2530*3960mm
Trademark
Zoomlion
Origin
China
HS Code
84295100
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
1097.50cm * 253.00cm * 396.00cm
Package Gross Weight
29000.000kg
Product Description
Product Description43m Four-axles Truck Mounted Concrete Pump
This is a 43m truck pump with pumping high-volume concrete. Max. pumping output is 140m³/h, meaning high construction efficiency.
• Boom intelligent damping technology. Reducing the impacting vibration of booms and makes operate more stably, reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Specially designed for poor concrete with easy segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Product Parameters
| Model | ZLJ5290THBJF 43X-5RZ | |
| pumping system | Max.theoretical output m3/h | 110/60 |
| Concrete pumping pressure MPa | 8/15 | |
| Rated working pressure MPa | 35 | |
| Pumping frequency min-1 | 25/14 | |
| Hopper volume L | 550 | |
| Loading height mm | 1540 | |
| Hydraulic system type | Open type | |
| Distribution valve form | S valve | |
| Cylinder bore × stroke mm | Φ150×1650 | |
| Concrete bore × stroke mm | Φ230×1650 | |
| Hydraulic oil cooling | air cooling | |
| Recommended slump cm | 12~23 | |
| Maximum aggregate size mm | 40 | |
| Boom | structure type | 43X-5RZ |
| Maximum reach height m | 42.3 | |
| Maximum reach radius m | 37.65 | |
| Maximum reach depth m | 29.68 | |
| Rotation angle | 360° | |
| Number of arm sections | 5 | |
| Arm length mm | 8350/6720/6700/8030/8500 | |
| Span angle | 90°/180°/180°/240°/195° | |
| Delivery pipe diameter mm | 125 | |
| End hose length mm | 3000 | |
| Minimum opening height of boom mm | 9790 | |
| Outrigger span (front×rear×longitudinal) mm | 7980×7600×7500 | |
| Chassis and vehicle | Chassis model | CA5300THBP1K2T2BE6A81 |
| Wheelbase mm | 4300+1350 | |
| Engine model | WP8.350E61 | |
| Engine rated power kW/(r/min) | 257/2100 | |
| Engine maximum torque N.m/(r/min) | 1400/(1200~1600) | |
| Engine displacement cc | 7700 | |
| Fuel tank volume L | 300 | |
| Exhaust emission standards | National Three | |
| Vehicle weight kg | 29000 | |
| Overall vehicle dimensions (length × width × height) mm | 10975×2530×3960 | |
Detailed Photos
