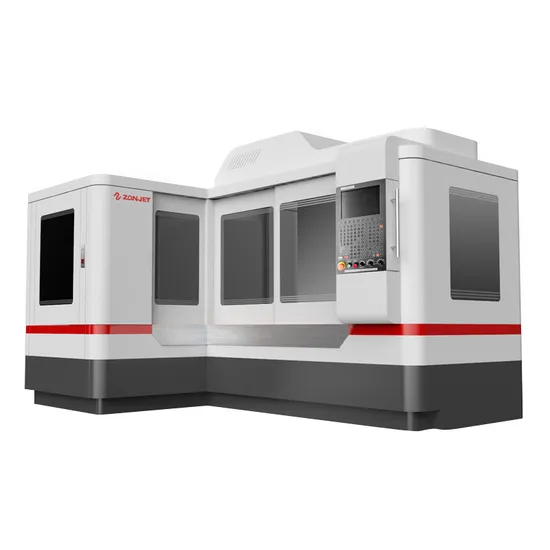

3 Axis Boring Machinery with Milling Capacity (ZJA13-1310)

Product Description

ZJA SERIES ZJA13-1310
-Product application
Deep hole drilling machines are mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.
Technical Parameter

Items		ZJA13-1310
Processing capacity	Drilling aperture range	φ3~φ32mm
	Max. drilling depth	1300mm
Processing range	X axis processing range	1300mm
	Y axis processing range	1000mm
Working table	Dimension of working table	900×1500mm
	Max. Loading capacity	8Ton
Processing speed	Max. Speed of spindle	4500r/min
	Feed speed	3000mm/min
Power parameter	Spindle servo motor	7.5KW
	X axis servo motor	15N.m
	Y axis servo motor	15N.m
	Z axis servo motor	10N.m
	Total power	28KW
Cooling system	Max. Pressure of cooling system	100kg/cm2
	Max. Flux of coolant liquid	85L/min
	Capacity of cutting oil tank	600L
Precision parameter	Aperture precision	IT8~IT11
	Harshness of Hole Surface	Ra ≤3.2μm
	Tolerance	0.5/500(S45#,10mm)
Others	Weight	11Ton
	Floor area of machine(Length*Width)	4500×3500mm
	Height	2800 mm

It is a special deep hole drilling operating system, which is powerful, simple operating, stable and durable. Main advantages:
1.Multi - segments processing automatically: It will adjust the feed rate automatically according to the processing schedule.
2.Logical control processing: The processing situation is monitored and the processing specification will be adjusted automatically if any unusual.
3.The highly sensitive monitoring equipment will sound an alarm if any unusual errors and stop processing, which is safe and found intuitively.
4.Multiple operation. There are optional modes: man-machine dialogue mode, machine programming mode and remote transmission mode.
The main structure and performance of the equipment
ZJA series is a CNC automatic machine for deep-hole drilling.The machine tool integrates modern industrial advanced technology as below:
Taiwan SYNTEC CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2.With high precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
3.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.
With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
