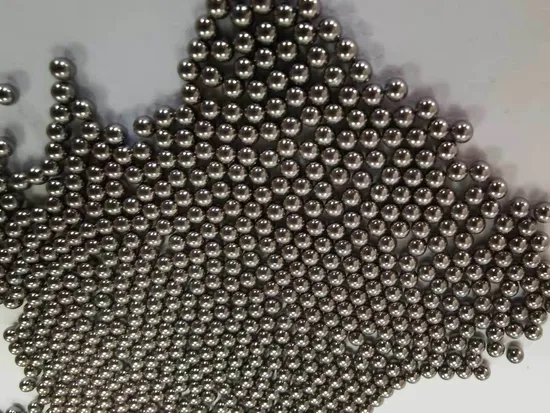

Tungsten Alloy Shot Tss Tungsten Super Shot Tungsten Alloy Ball Dia2.0mm Ball

Product Description

High density tungsten alloy balls for counterweight Tungsten nickel iron/copper(WNiFe&WNiCu) alloy balls/shots Material: W90NiCu, W90Ni7Fe3, W92NiCu, W92.5NiFe, W95NiFe, W97Ni2Fe1 1) Density of tungsten shot: 17g-18.5g/cm3 2) Available size: Dia: 2.0mm,dia2.25mm,dia2.5mm,dia3.0mm,dia3.5mm,dia4.0mm,dia4.5mm, dia5.0mm,dia5.5mm,dia6.0mm,dia6.5mm and so on,the biggest size is dia15mm High density Tungsten based alloy Tungsten Alloy Density: (17~18.5) Tungsten Alloy component: W(88-98)% with the addition of nickel and copper or nickel and iron, etc Tungsten Alloy applications: For making rotors of aircraft wings, shileding materias for radioactive isotope (Cobalt 60), and formaterials of armor piercing bullets and mould, etc.

Class	Nominal tungsten (weight percent)	Density (g/cc)	Hardness ( HRC )(maximum)
1	90	16.85 - 17.25	32
2	92.5	17.15- 17.85	33
3	95	17.75- 18.35	34
4	97	18.25- 18.85	35

We also have other tungsten carbide products:
Tungsten Carbide ball/tungsten caride shot
The tungsten carbide alloy ball/shot:
1. Tungsten nickel iron/copper(WNiFe&WNiCu) alloy balls/shots
Material: W95NiCu, W95NiFe, W90Ni7Fe3, W92Ni5Cu3, W92.5NiFe, W97Ni2Fe1, etc.
2. Tungsten carbide alloy balls/shots
Grade: YG6 YG6X YG8 YG10 or as customers' requirements
Material: WC94% Co6%, WC92% Co8, etc
Property: Good Wear Resistance,High Hardness
3. Tungsten shots/balls specification:
1) Density of tungsten shot: 17g-18.5g/cm3
2) Available size:
Dia2.0mm, dia2.25mm, dia2.5mm, dia3.0mm, dia3.5mm, dia4.0mm, dia4.5mm, dia5.0mm, dia5.5mm, dia6.0mm, dia6.5mm and dia10mm, etc., and the biggest size is dia15mm.
Tungsten carbide alloy grade:

Grade	Binder (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
YG6	6	14.8	90.0	1520
YG6X	6	14.9	91.0	1450
YG6A	6	14.9	92.0	1540
YG8	8	14.7	89.5	1750
YG12	12	14.2	88.0	1810
YG15	15	14.0	87.0	2050
YG20	20	13.5	85.5	2450
YG25	25	12.1	84.0	2550
