Hanbs W15 Five Tool Simultaneous Precision CNC Lathe
| US$9,400.00-9,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HS-W15
Processing Accessory
Centre CNC Lathe
Guide Rail
THK,PMI
Tool Holder
Five-Knife
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
System
Syntec
Axis Number
Each Knife Have Two Axis
Processing Time
Techincian Will Do The Assessment
Transport Package
Wood
Specification
1550*1060*1650mm
Trademark
HANBS
Origin
China
Production Capacity
60sets/Month
Product Description
The Zhongcong W15adopts a five channel CNC system, with an 11 axis absolute value servo motor and spindle servo motor. It can process products with five cutting tools simultaneously. Not only is the processing efficiency several times higher than traditional equipment, but the operation is simple and easy to learn, and programming is fast and convenient.| control system | HANBS self-innovate (yn 1.0 versions) |
| Servo axis number | Standard 12 axis |
| Programming method | 5-channels G code programming, each axis can be programmed separately |
| The number of knives | Group 5 |
| Maximum machining diameter | Φ15mm Φ20mm |
| Maximum machining length(50mm in guide mode) | The walking knife mode is 50mm |
| Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm) | Φ6mm |
| Drilling arm handle diameter | ∅5(Three)∅6(Two) |
| Attack capability (spindle reversal mode) | M6 Copper |
| Dental tapping ability (doraxial delivery) | M5 Copper |
| Car thread function | Yes |
| Multi-knife synchronous processing function | Yes |
| Radial max bore diameter | Φ7mm |
| Radial max bore tapping size | M5 |

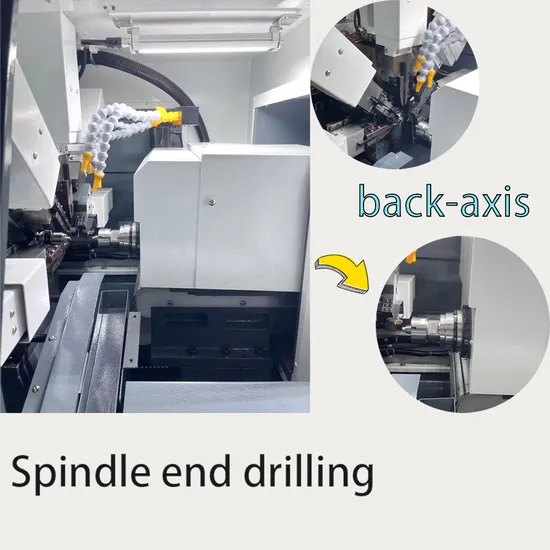

| Maximum clamping diameter of the back side spindle | ∅12mm |
| Maximum bore diameter of the back-side spindle | ∅6mm |
| Maximum tapping diameter of the back-side spindle | M6 |
| Spindle power | 2KW(With the function of score) |
| Backside platform axle power | 1.0KW |
| Maximum spindle speed(For short use only)6000rpm | 6000rpm |
| Back maximum speed (for short use only) | 6000rpm |
| Maximum removal length of piece | 50mm |
| Side power tool unit (optional) | 2 |
| End face power tool unit (optional) | 1 |
| Row knife ( 8 * 120 * 3)) | 3 |
| Standard maximum number of tool installed (5 knives + 5 drill / boring) | 10 |
| High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill) | 11 |
| Knife size | 8*8 |
| Z1.2.3.4.5 axial stroke | 50mm |
| X1.2.3.4.5 axial stroke | 30mm |
| Backshaft itinerary | 150mm |
| X1.2.3.4.5 axial power | 400W |
| Z1.2.3.4.5 axial power | 400W |
| Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed | 30m/min |
| X1, X2, X3, X4, X5 axis fast forward speed | 30m/min |
| Center height of spindle | 1010mm |
| High version input power | 7.6KW |
| weight | 1800Kg |
| Fuel tank storage | 50L |
| size | 1550*1060*1650mm |
Q&A
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. How about your price?
A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions.
Q4.Do you have CE certificate?
A. Yes,we have.
Q5.What is MOQ?
A.1 Unit.
