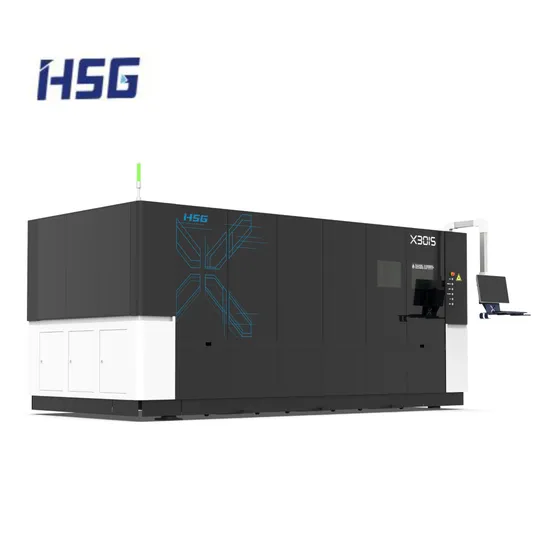

Fiber Laser Cutting Machine for Iron Sheet Carbon Steel Sheet

Product Description

Product Type: X Series High-precision Sheet Laser Cutting Machine 1500W-3000W, that can cut 5-15mm metal sheet, with Alpha T Bus CNC system, Push-pull Platform. Product Description
The point of X
1.Fully-sealed Structure, Eco-friendly Cutting
With top cover, the machine is fully sealed and can discharge cutting smoke while cutting with the help of zoning ventilation system in cutting area.
2.Alpha T Bus CNC System
Alpha T can make data transmission via a network cable.
Micro-connection cutting Active obstacle avoidance Real-time monitoring of core components Active reminder of machine maintenance * Bus refers to data transmission mode via on-site bus control system.
3.Single Push-pull Platform
The platform makes rear loading possible. Anti-shake clips are installed on both sides to prevent sheet vibration during cutting.
Tips: The configurations above vary from model to model. The latest files shall prevail.
4.Autofocus Laser Cutting Head
The cutting head can adjust its focus according to laser beam mode to make sure of mirror-like surface.
Servo autofocus system Automatic cooling and obstacle avoidance Three built-in protective lens Anti-pollution design Give early warning if abnormal Product Parameters

Feature/Model	X1510	X3015
Power	1500-3000W	1500-3000W
Working Area (L*W)	1500 * 1000mm	3000 * 1500mm
X/Y Axis Positioning Accuracy	±0.03mm/m	0.05mm/m
X/Y Axis Repositioning Accuracy	±0.03mm	±0.05mm
Max. Moving Speed	100m/min	120m/min
Max. Acc. Speed	1.2G	1.0G
Overall Dimensions (L*W*H)	4400*2900*2300mm	4800*3600*2800mm

Cutting Sample

Certifications

Packaging & Shipping
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.

Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 16 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.

FAQ
1. who are we? We are based in Guangdong, China, start from 2009,sell to Domestic Market(78.70%),South Asia(3.66%),Eastern Europe(3.05%),Southeast Asia(2.99%),Western Europe(2.44%),Mid East(2.20%),Eastern Asia(1.83%),South America(1.46%),Oceania(1.19%),North America(0.73%),Africa(0.71%),Southern Europe(0.61%),Northern Europe(0.43%). There are total about 1000+ people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Laser Cutting Machine,Sheet & Tube Laser Cutting Machine,Tube Metal Laser Cutting machine,Laser Welding Machine,Bending machine 4. why should you buy from us not from other suppliers? Relying on our software development advantages and several years'steady development,we have developed laser machines of eight series and more than 60 models and have reached year's production capacity of more than 2000 sets. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian,Korean
