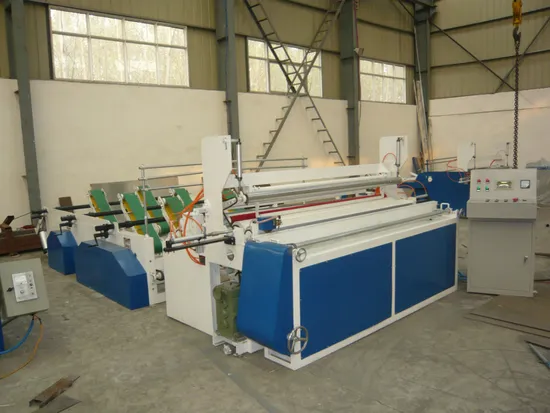

Toilet Paper Rewinding Embossing & Perforating Machine

Product Description

Toilet Paper Rewinding, Perforating & Embossing Machine

Machine Model	1800mm
Raw material Width	1800mm
Operation	Easy
Finished Roll Diameter	Φ70~140mm(adjustable)
Finished Roll Core Diameter	According to customers' need
Raw Material Diameter	≤Φ 1100 mm (Other sizes are available )
Raw material loading	pneumatic
Converting of raw material	1-3plys
Raw Material Core Diameter	76.5 mm(customer can assign )
Control	PLC
Alarm system and Remote control (with Chinese Patent)	yes
Emergency stop system	Yes
Perforating Pitch	electricity
Gap of Perforating Pitch	Adjustable
Speed	140-180 m/min
Parameter Setting	Adjust speed
Embossing Roller	steel roll
Unwinding Paper Stand	1-3plys
Power	5.5kw
Dimension (L×W×H)	6000×2600×1600mm
Weight	About 2500 kg

related paper machine
1575mm 3tons per day tissue paper production line
I. Technical parameters

Output paper	tissue paper
Raw material	recycled paper
Capacity	3 tons per day
Net paper width	1600mm
Paper weight	14-19g/m2
Design working speed	150m/min
Working speed	50-110m/min
Rail gauge	2400mm
Width of copper cylinder	1950mm
Drive way	A/C frequency converter speed adjusting, section drive.

II. Main structure with spec
1. Cylinder mold part
1500mm×1950mm stainless steel cylinder mold 1 pc, 400mm×1450mm couch roll 1 pc, rubber hardness 38ºC±2.

2. Dryer section part
2000mm×1950mm alloy dryer cylinder 1 pc , 400mm×1950mm touch roll 1 pc, rubber hardness 90ºC±2, double layer exhaust hood, pneumatic loading device.

3. Winding part
700mm×1950mm winding cylinder 1 pc, 250 speed reducer 1 set

4. Rewinding, cutting and finishing part
1575mm rewinding machine with embossing & perforating 1 set
Tissue paper cutting machine 1 set
Plastic bags sealing machine 1 set

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
