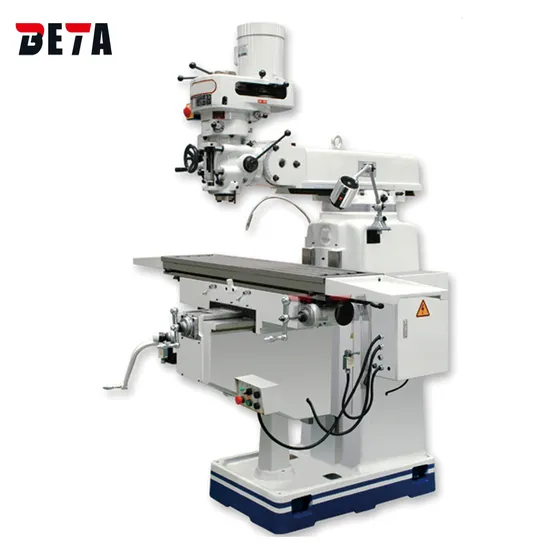

Variable Speed Turret Milling Machine for Metal X6333 Price
Basic Info.
Model NO.
X6333
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Variable Speed Turret Milling Machine for Metal X6
Model
X6333
Table Size
330*1370mm
Spindle Taper
Nt40
Spindle Speed
65-4500rpm
Spindle Motor Power
3.7kw 5HP
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
RAM Travel
500mm
Color
Blue and White
Spindle Travel
127mm
Transport Package
Wooden Pallet
Specification
2200kg
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
180.00cm * 202.00cm * 220.00cm
Package Gross Weight
2200.000kg
Product Description
Variable Speed Turret Milling Machine For Metal X6333 Price| Model | Unit | X6333 |
| Table size | mm | 330×1370 |
| Longitudinal travel | mm | 820(1000) |
| Cross travel | mm | 380 |
| Vertical travel | mm | 460 |
| T-slot No.and size | mm | 3×16 |
| Ram travel | mm | 500 |
| Distance from spindle nose to table surface | mm | 0-450 |
| Spindle hole taper | NT40 | |
| Spindle travel | mm | 127 |
| Spindle speed | rmp | 50HZ:65-4500 60HZ:80-5440 |
| Auto.quill feed | mm/rev | 0.04/0.08/0.15 |
| Spindle motor | kw | 3.7KW/5HP |
| Head swivel | ° | 90° |
| Head tilting | ° | 45° |
| Dimension of package | mm | 1800*2020*2200 |
| G.W/set | kg | 2200 |
Features:
1. High rigidity and quality casting iron, and saddle guide-way is coated by TF-material.
2. 16 steps speed milling head made in Taiwan, variable speed milling head and inverter milling head can be equipped as optional accessories.
3. X/Y/Z-axis screw are made in Taiwan with good smooth and reliable features.
4.Table surface is treated specially to harden HRC45-55.
5. X/Y/Z-axis guide way surface are treated specially to harden HRC45-55.
Standard accessories:
NT40 spindle taper, 3.7kw / 5HP Taiwan milling head,
16 steps spindle speed (50HZ): 65-4500rpm , (60HZ): 80-5440rpm
Hardened worktable and guide, Lead screw from Taiwan, Finely ground central T-slot,
guide way with Turcite B cover, spindle bearing with P4 class ,Hand oil pump,
Work light, Draw bar,Electric cabinet, Tool and tool box.
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
