Brand Motors Municipal Waste Plastic Pipe Shredder Plastic Recycling Machinery

Product Description

Brand Motors Municipal Waste Plastic Pipe Shredder Plastic Recycling Machinery
Product Description

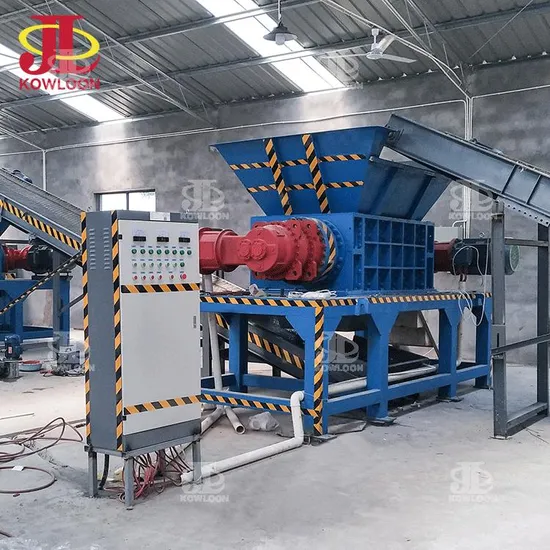

Double Shaft Plastic Shredder Machine
The double shaft plastic shredder is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components depending on the material and final size or used with other stages of shredders to reduce the material to the desired size. Kowloon machinery (manufacturer of double shaft shredder from china) shredders are equipped with planetary reducer and brand motor for highly reliable performance and low maintenance cost.

Model	JLSS1000	JLSS1200	JLSS1500	JLSS2000
Motor	15kw+15kw	22kw+22kw	55kw+55kw	90kw+90kw
Gearbox	2units,planetary type, gear transmission
Shaft	solid shaft, made of 40Cr, hardened and tempered
Shredder chamber (inner)	940x725mm	1120x1000mm	1450x1100mm	1920x1250mm
Rotor rotary speed	8-18rpm	8-18rpm	8-18rpm	8-18rpm
Blade	diameter 360mm	diameter 360mm	diameter 530mm	diameter 560mm
Lubrication system	With automatic oil lubricator
Dimension	3.2x1.3x2.3m	3.2x2x1.9m	4.9x2.8x2.8m	6x3.8x4.8m
Weight	6000kg	12000kg	18000kg	29000kg

Model	JLSS400	JLSS600
Main shaft power	11kw*1	11kw*2
Main shaft rotary speed	20rpm	20rpm
Working capacity	according to specific gravity	according to specific gravity
Weight	1000kg	3000kg
Discharging conveyor	None	None
Shred blade	20pcs, 18-teeth, thickness 16mm, φ260, made of 55Sicr	20pcs, 18-teeth, thickness 16mm, φ260, made of 55Sicr
Finished chips size	10-25mm	≤50mm
Infeed open	700*650m	820*900mm
Shredder chamber size	400x480mm	600x480mm
Dimension	1450*1100*1600mm	3660*1100*1800mm

Details Show
Plastic Shredder Machine
One of the first steps to plastic recycling is utilizing a strong and reliable plastic shredder. Kowloon Machinery's JLSS line of dual-shaft shredders are used in a variety of applications such as plastic drum reduction, plastic pallets shredding, plastic bottles crushing and packaging materials reduction.
For industrial applications, our high-quality plastic shredder machine gets the job done right. Kowloon Machinery's line of JLSS Series stationary shredders is designed to provide you with optimized shredding power that can easily overcome the challenges that are often associated with shredding thicker material like plastics. These dual-shaft shredder machines are engineered with a focus on high-torque that powers the sharp and durable knives as they easily bite right into the material and chew it up into sizeable scraps.The entire shredding process works quickly and efficiently. All of our JLSS series shredders are available for the reduction, recycling, and processing of various plastic products. They operate with a throughput that ranges from light-duty of up to 2 ton per hour to medium-duty of 8 to 15 tons per hour to heavy-duty of more than 20 tons per hour. Plastic Shredder Features
1. Low speed, high torque rotor, cutting and shearing working principle suitable for both soft and hard materials;
2. Blades made of special alloy, different shape, thickness and cutting head quantity providing the optimum solution for different materials.
3. Siemens, abb, weg…etc quality motors are available for different customers' options
4. Schneide r, chint, siements…etc electrical components to ensure steady performance and realize machine 24hours running, also plc system is optional to enabling automatic reverse for overload protection and minimizing blades damages;
5. Individual electrical control panel with plc control system ensure the machine work properly and safety;
6. Detachable type cutting head on shredder blades, makes the maintenance and replacement of wearing parts easier and much shorten maintenance time.
7. Low speed, lower noise, workable in workshop and outdoor.
Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ
1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
