Plastic Bottle Lid Shampoo Top Disc Cap Assembly Equipment

Product Description

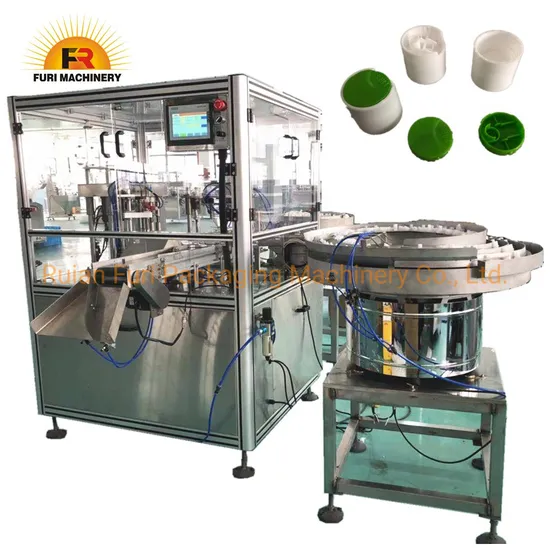

FRTB-ZH3 Top Disc Cap Assembly Machine
Plastic cap parts join/assembling machine
Machine Features
1.Instead of Manual work,this machine can auto assembly aluminum caps with cork and folding in one machine,It increase production efficiency.
2.The machine can folding and assembly at speed of 4000-5000 pcs per hour,much fast and clean..
3.Especially for the products need to meet high requirements on the sanitary condition,it can avoid second-pollution.
4.Automatic Counting device installed, which you can preset the quantity per package,when it reach the quantity, the machine can stop automatic, it can increase your working efficiency and accuracy.
5.Adopts Auto vibrator sorter and feeder, which can make the dis-ordered caps in order and in correct direction, to ready the caps for main machine.
6.The Electric control system we use Variable Frequency Control Technology ,which is much more easy operate,stable,widely used, and longer using life.
7.This machine meet "GMP"and "CE" standards.
Structure of Equipment
Automatic cap sorting machanism: it puts the messy bottle cap in order and makes all cap mouth upwards
Cap delivering amchanism: it delivers the ready cap into the cap assembly machanism in order and correct way.
Cap assembly machanism: it combines 2 pieces and completes the assembly process.
Main Machine Assembly:
A: Bottom cap feeding
B: Bottom cap second pressing
C: Top disc feeding
D: Top disc detective
E: Top disc second pressing
F:Unqualified cap rejection
G: Completed cap discharge
Main Technical Parameters

Productivity capacit	60pcs/Min
Power	2.5 KW
Rated Voltage	220V,Single Phase
Compressed air	0.5m³/hour 8kg pressure
Machine Size	2000mm×2000mm×1500mm
G/N.W.	900/700KG
