Heavy Duty Infrared Single Spindle Panel Multi - Blade Saw

Product Description

Product Description

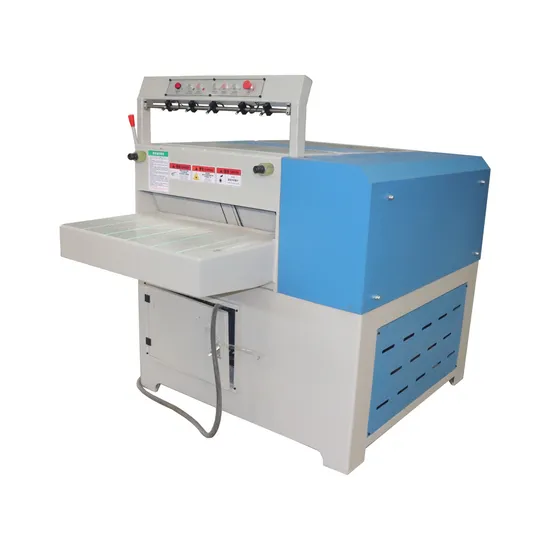

Single Spindle Panel Cutting Multiple Blade Rip Saw

Model	Q-30-500	Q-50-500	Q-50-800
Max. Process Plank Height	0-30mm	0-50mm	0-50mm
Max. Process Plank Width	500mm	500mm	800mm
Blade Diameter	160mm	210mm	210mm
Main Shaft Diameter	40mm	50mm	50mm
Main Motor Power	7.5kw	11KW	15kw
Weight	400kg	500kg	730kg

More Details
Heavy Duty Single Spindle Panel Cutting Multiple Blade Rip Saw

Model	ZHW800-70	ZHW800-80	ZHW800-100
Max. Process Plank Height	10-70mm	10-80mm	20-100mm
Max. Process Plank Width	800mm	800mm	800mm
Blade Diameter	280mm	305mm	355mm
Blade Quantity	1p-10p	1p-10p	1p-10p
Main Motor Power	22kw	30KW	37kw
Speed	3500/min	3500/min	3500/min

Square Wood Cutting Multiple Blade Sawmill

Model	F60	F80	F100	F120	F150	FZ100
Cutting Height(mm)	0-60	30-80	40-100	50-120	60-150	40-100
Cutting Width(mm)	250/300	250/300	250/300	250/300	250/300	350/400
Blade Diameter(mm)	150	180	210	230	255	230
Main Motor(KW)	18.5/22	22*2	22*2	22/30	22/30	30*2
Overall Size(mm)	1850*1400*1550	2250*1450*1550	2250*1450*1550	2250*1450*1550	2280*1450*1550	1800*1600*1850
Weight(kg)	1190	1260	1420	1560	1620	2330

Log Cutting Multiple Blades Saw

Technical Parameter	Y-150	Y-200	Y-240	Y-260	Y-285
Sawing the log diameter	20-150	60-200	80-240	100-260mm	130-285mm
Main Motor power	18.5kw*2	22kw*2	30kw*2	30KW*1,37kw*1	30KW*1,37kw*1
Main Shaft Diameter	50mm	50mm	60mm	60mm	60mm
Spacer Diameter	90mm	90mm	100mm	100mm	100mm
Quantity of circular saw blade	6 pieces	6 pieces	6 pieces	6 pieces	6 pieces
Saw Blade Diameter	255mm	305mm	355mm	380mm	405mm
Weight	1570kg	1720kg	2200kg	2300kg	2350kg

Technical Parameter	Y-330	Y-360	Y-400	Y-430	Y-480
Sawing the log diameter	150-330mm	170-360mm	180-400mm	200-430mm	250-480mm
Main Motor power	37KW*2	55kw*2	55kw*2	75KW*2	75KW*2
Main Shaft Diameter	70mm	80mm	80mm	100mm	100mm
Spacer Diameter	110mm	120mm	120mm	140mm	140mm
Quantity of circular saw blade	6piece	6 pieces	6 pieces	6 pieces	6piece
Saw Blade Diameter	445mm	500mm	550mm	600mm	650mm
Weight	2550kg	2680kg	3500kg	3880kg	4100kg

Why Choose Us
Our Company
Established in 1988, Sawmill-World is a professional manufacture that does its own research and development. We specialize in woodworking machinery like band saws, pallet machines, wood crushers,etc.. With over 50 employees and covering an area of 1400 square meters. Over the past 30 years, we have exported to over 70 countries including America, Mexico, Canada,India, Australia and many others. All machines in our factory have CE and ISO, and we can customize any machine certificate according to your needs. Most importantly, we can provide machine customization services and provide you with a complete product production line for one-stop procurement, with rich sales and export experience.
