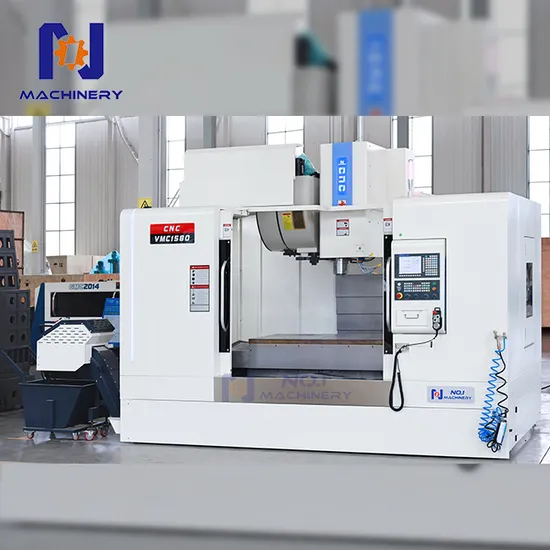

Vmc 1580 15kw 18.5kw Servo Motor Auto Too Changing 3 Seconds 3 Axis Travel 1500*800*700 Machining Center

Product Description

Product Description



Main Feature: 1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7 Fully automatic electronic lubrication system for uniform oil supply and good stability.
Specifications

Item Model	Unit	VMC1580
Size of worktable	mm	1700*800
T-shaped groove for table	mm	5-22*135
Maximum load on table	kg	1500
X/Y/Z rail width	mm	55/45/HARD
X/Y/Z ball screw specification	63mm	5010/6310/5010
X/Y/Z Axis stroke	mm	1500*800*700
X/Y/Z motor torque	NM	24/24/26
Spindle face to table position	mm	130-830
Distance from Spindle Center to column	mm	810
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	12/12/12
Spindle end taper/diameter	mm	BT50-155
Spindle motor power	kw	15
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Disc
The capacity of knife storage	tools	24/30
Maximum tool diameter/weight	mm/kg	112/200/18
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	14000
External dimensions	mm	4000*3000*3050

Details Display
Taiwan KENTURN BT40 Spindle, Optional 8000, 10000, 12000rpm
OKADA 24 TOOLS, Automatic tool changing system 24-ATC
Hand pulse, Air gun, Water gun




safety electrical components Quick plug as standard Make the machine performance better.
Product packaging
Company Profile
Zaozhuang No.1 Cnc is a large-scale CNC machinetool manufacturer with more than 20 years ofmanufacturing experience.Our machines havebeen exported to more than 150 countries andregions, covering North America, Europe, SouthAmerica,the Middle East,Southeast Asia, etc.. Our machines can provide ISO, CE, EAC, ERP, WIPO certificates and various customized services.Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales service for all customers in the world.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms? A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ? A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set )
