Automatic High Pressure Moulding Box Molding Line, Foundry Machine

Product Description

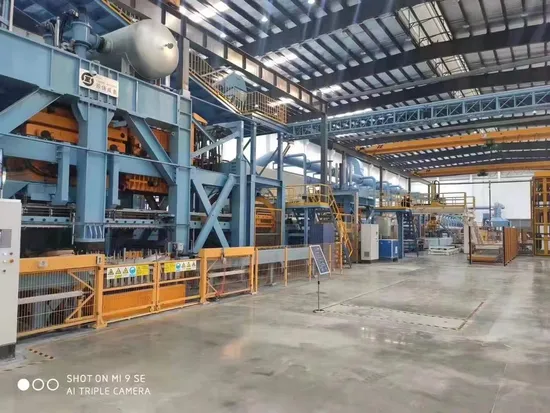

Static Pressure Horizontal Automatic Molding Line
Product Detail:
Productivity of moulding lines
up to 210 mould per hour achieved Plants with higher productivity may be designed on request.
Size of moulds up to 2500 mm length
Plants with larger flask may be designed on request.
Product Orientation
1. High ability for compaction sand, rigid and dense mould, suitable to manufacture of complex castings.
2. Dimensional stability and better surface roughness ,high efficiency of moulding
3. Mould plate with high rate of utilization. Good working condition and labour saving
A. Process of molding machine
1. Empty Flask is indexed into the molding machine molding station
2. Pattern bolsters rotate or shuttle
3. The lifting cylinder rises, and the formwork, sand box and pre-sand frame rise
4. Quantitative sand adding
5. Move the sand bucket out while moving the multi-contacts in and clean the upper surface of the pre-sand frame
6. The lifting cylinder goes up again to top tight
7. Air pre-compacting and compaction
8. The lifting cylinder falls down while drafting
Static Pressure has following advantages.
High ability for compaction sand, rigid and dense mould, suitable to manufacture of complex castings.
Dimensional stability and better surface roughness.
High efficiency of moulding.
Mould plate with high rate of utilization.
Good working condition and labour saving.
-PLC from SimensS7, with touch screen and network Ethernet etc.
-Servo system from SEW or Siemens and and Variable-Frequency Drive from Rexroth.
-Hydraulic valve of moulding machine from Rexroth, Hydraulic Cylinder from China famous brand.
-Low-voltage electrical components from Schneide.
-Hydraulic Seals from international brand.
-Bearing from China famous brand (HRB/LYC/ZWZ).
