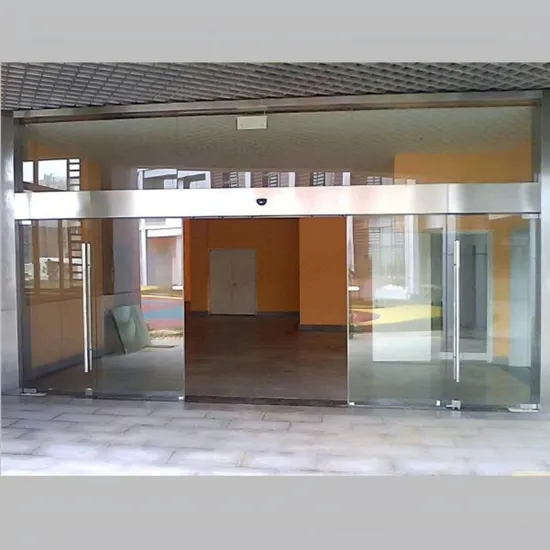

Tempered Glass Revolving Automation Aluminum Alloy Automatic SUS304 Frame Tinted Glass Sliding Door with Sensor
| US$135.00-180.00 | 1 Square Meter (MOQ) |
Basic Info.
Model NO.
XF-S-3500
Surface Finishing
Finished
Glass Type
Tempered Glass
Certification
CE, CCC
Open Style
Sliding
Position
Exterior
Thickness of Glass
6,8,10,12mm
Transport Package
Wooden Case
Specification
2500*1000*500mm
Trademark
XIFEI
Origin
China
HS Code
7610100000
Production Capacity
20000 Sets / Year
Product Description
| MORE PARAMETERS | ||
| Glass | Material | Tempered Glass, Frosted Glass, Tinted Glass, LOW-E Glass, Laminated Glass and so on |
| Size | a. Single glass: 6,8,10,12mm Tempered Glass | |
| b. Double glazing: 5mm+ 6/9/12mm +5mm Tempered Glass | ||
| c.Laminated glass: 5mm+ 0.38/0.76/1.52 PVB+5mm Tempered Glass | ||
| Frame | Material | Aluminum alloy( 6063-T5 ) / Stainless Steel( SUS304 ) / frameless |
| Size | 2.0 / 3.0mm or customer-tailor | |
| Surface Treatment | Anodized / Fluorine carbon coating / electrophoresis / powder coated / color is optional | |
| Door Width | 600mm ~ 1300mm | |
| Door Weight | 90 ~ 120kg | |
| Fly Screen | Type | Fiberglass flynet / stainless steel mesh / Bi fold screen |
| Motor | Voltage | AC 220-250V 50-60HZ |
| Type | DC 24V brushless DC Motor | |
| Brand | DORMA, Panasonic,Chinese brand or customer-tailor | |
| Control System | Type | 8 digital Micro-computer processing controller |
| Control | Microwave sensor / keypad / UPS / key switch / remote control / magnetic lock etc | |
| Opening Speed | 300 ~ 550mm/s (Adjustable) | |
| Closing Speed | 250 ~ 500 mm/s (Adjustable) | |
| Open Delay Time | 1~20s (Adjustable) | |
| Closing Force | >100N | |
| Manual Open Forece | <50N | |
| Power Consumption | <150W | |
| Sealing | Material | Rubber seals between glass and frames;Brush seal between door and guide rail |
| Safety | Anti-clip Function | Anti-clip function of rebound in case of obstruction |
| Manual Open | If power failure occurs, it can be turned on manually | |
| Others | Working Temperature | -30 ~ +50°C |
Remarks:
1. Shanghai XIFEI Door Industry Co., Ltd is a professional enterprise engaged in industrial door design, manufacturing,
sales & installation and after-sales service.
2. The company introduces advanced equipment and technology, design a variety of products according to customer
needs, aims to support customers with high-quality products and professional solutions.
3. The company mainly produce steel door, wood door, fire door, high speed door, sectional door, roller shutter door,
hangar door, logistic docking system and so on.
4. Honors and Certifications:
a. China AAA Enterprise
b. ISO9001: 2000 Management Certification
c. CE Certification
