Full digital USB ultrasound Laptop PC system

Product Description

Product Description
HC-A006 Full digital USB ultrasound Laptop PC system
Trade assurance
Features for ultrasound laptop:
I Specification:

Model	HC-A006 Notebook LED Digital Ultrasound Scanner
Display mode	B;B/B;4B;B +M;M
Display size	10.4inch LED displayer
Image multiplying factor	3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)
E-zoom:	Magnify 2 times of real time image
Dynamic range	0~120db adjustable
Focus position	Dynamic electron focusing
Image proessing	8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color processing
	According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Gray scale	256 levels
Frequency conversion	2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz 5 periods of frequency conversion Frequency range applies 5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe
Measuring function	Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.
Annotation function:	Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display
Puncture guide	3.5MHz convex array probe can display punture guide in B mode
Gain control	8segments TGC and overall gain can be adjusted respectively
Image polarity	Left and right flip; up and down flip
Capacity cine loop	Real time display 256 consecutive images which are moemorized successively
Image playback	Series playback or check one by one
Permanent storage	128 images
Output interface	USB port
Standard configuration	Ultrasound machine with 3.5Mhz convex array probe and power adapter

II.Standard Configuration:
1.One host machine
2.One convex array probe:F=3.5MHZ
3.One power adapter
4.11.1 V 2500MAH Li battery
5.USB port.
Other parameters:

Designation	Performance
Displayer	10.4 inch LCD color display
Perimeter and area measured deviation (%)	≤±20%
The battery pack works continuously	≥1 hour
Input power	AC220V±22V,1.5A
Gross weight	about 3.62 kg
Host weight	about 2.67 kg
Host appearance size	300×245×60 (length × width × height)(mm3)
The outer packing size	365×255×70 (length × width × height)(mm3)

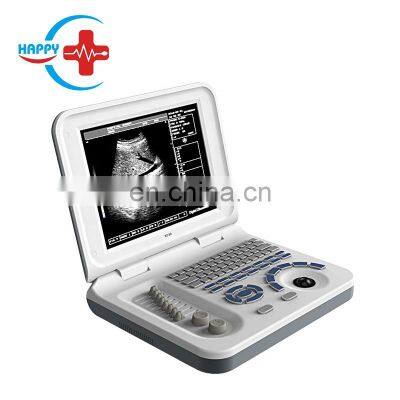

Pictures for ultrasound laptop:
Packaging & Shipping
Company Information
Our Services
FAQ
1. How to place order of ultrasound laptop ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For ultrasound laptop product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our ultrasound laptop , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For ultrasound laptop , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For ultrasound laptop , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
