500kg/H Fully Automatic Continuous Chocolate Ball Mill, Chocolate Ball Milling Machine

Product Description

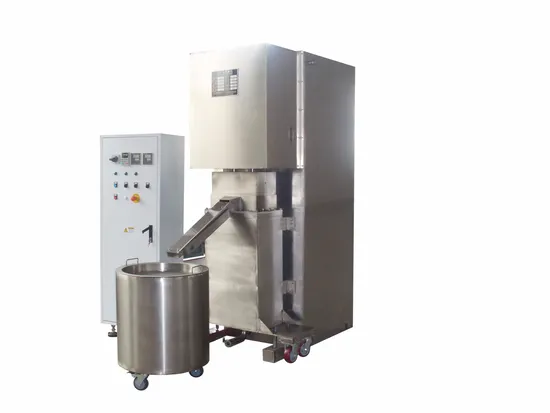

Chocolate Ball Mill/Chocolate Ball Milling Machine
Product Description
Chocolate ball mill is used for ball grinding and milling chocolate pastes. Through collision and friction between the steel balls and the chocolate pastes inside the machine cylinder, the chocolate pastes will continuously improve its fineness till it reaches the required rate. This machine has advantages of high production output, low energy cost, even fineness and etc.. This machine should be used along with chocolate refiner and conche, chocolate storage tank and chocolate delivery pump to achieve continuous production and improve production efficiency. It has automatic temperature control.
Technical Specifications

Model	IBM250	IBM500	IBM1000
Main motor power(KW)	7.5KW*2	15KW*2	55
Main shaft speed(r/min)	250-500	280-630	330-800
Grinding Media(kg)	200	400	900
Capacity(kg/h)	150-250	500kg/h	750-1000kg/h
Fineness (um)	20-25	20-25	20-25
Machine weight (kg)	2000	3500	5000
Size(mm)	1240*960*1733	2320*1070*2385	2400X1500X2600

Detailed Photos
Process Flow Chart
About Us
After Sales Service
We can provide door to door services and turnkey projects for customers from all over the world.
Supply of spare parts for whole product life time. 7*24 hours online technical support. Free training for operation & maintenance of equipment. On site installation & commissioning. Welcome to our factory, IDL will be your ideal partner.
