Factory Supply Low Price Small Desktop Manual Xq-1 Metallurgical Inlay Machine

Product Description

Product Description

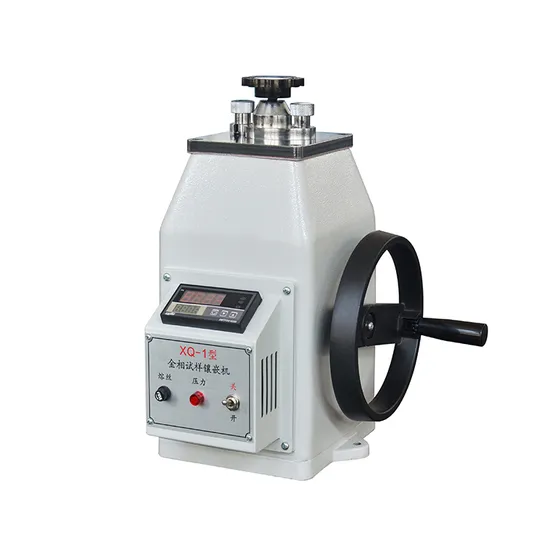

XQ-1 Metallographic Sample Mounting Press
Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. XQ-1 metallographic sample mounting press adopts manual mechanical pressure, and heating temperature is controlled by the digital temperature controller. It has stable and reliable performance and easy operation, which is the economic choice for sample mounting. (Only for thermosetting materials, such as Bakelite powder, Urea formaldehyde molding powder etc.)
This metallographic mounting machine is our most popular one with stable performance. It has always been a best-selling product.
Product Parameters Technical Parameters

Model	XQ-1
Mould Diameter	Ф25mm,Ф30mm,Ф40mm (Choose one)
Cavity Height	82mm, effective 40mm
Heating Power	440W
Power Supply	220V, 50Hz,5A
Dimensions	340×260×430mm
Net Weight	32kg

Packing List

Name	Specification	Qty
Machine Body		1 set
Handle		1 pc
Heater		1 pc
Bakelite Powder	30g	1 bottle
Usage Instruction Manual		1 copy

Our Advantages 1. Stable performance, small and exquisite, easy to operate, high safety factor
2. The price of this product is low, and there is a 1-year after-sales service guarantee.
3. Our products are in line with international standards, have ISO9001 qualification certification, and CE certification.
Company Profile Chongqing Scope sell are all laboratory equipment, mainly including metallographic equipment, laboratory consumables, microscopes, hardness testers, medical simulators, etc. These products are produced by our own factories or cooperative factories. The production factories have all undergone field inspections, and the production specifications of the products are in line with international needs. They also have various qualification certificates for export.
The metallographic equipment factory not only manufactures our metallographic equipment, but also manufactures hardness testers. Combining factory buildings, testing workshops, office areas, and storage areas as one. The machinery for processing products is imported from Germany and Japan, with good accuracy and stability. The factory is in Shanghai, which is convenient for the transportation and export of products, and provides products to domestic and foreign laboratories and testing institutions every year.
FAQ 1. What payment services are available?
We support T/T payments, or Western Union. You can communicate with us about other payment methods in detail.
2. What is the lead time for a product?
The product delivery time is 7-15 days.
3. What is quality control and producing standards?
We meet international production standards, have strict quality control and product qualification certificates, such as CE and ISO.
4. What is the packing information?
The packaging specifications of each product will be different, and they are provided with neutral packaging cartons.
5. Do you provide samples? How long can I expect to get the sample?
We can provide samples, if it is express, the transportation time will be about 2-3 weeks to get the product.
