High Quanlity Gnss Rtk Hitarget V90plus with English Voice

Product Description

Key Features :
1.Dual-frequency RTK GNSS.
2.660-channel GPS+GLONASS+SBAS+GALILEO
3.Integrated UHF+GSM/GPRS+Bluetooth.
4.Offers tilt survey with a maximum tilt angle of 30 degrees.
5.Supports electronic bubble calibration
6.Standard Rinex data and HI-TARGET raw data recorded simultaneously.
High quanlity GNSS RTK Hitarget v90plus with english voice
With a hi-tech, fully integrated design, the conveniently sized V90 is one of the most flexible choices for any measuring task. Built-in Linux operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC , V90 GNSS system provides surveyor industry-leading GNSS solutions.
iHand30 Controller:
Default Configuration
The iHand30 is designed for intelligent RTK with NFC sensor, a durable keyboard,ultra-long battery life and sensitive touchscreen,preinstalled free and intelligent Hi-Survey software. Hi-Survey software is the first high-precision survey software of Hi-Target running on the And roid platform,supports tilt survey and electronic bubble, can perfectly cooperate with V90.
Specifications Of iHand30:

Hardware Configuration	OS: Android 10
	Processer: 2.0GHz, 8 core
	Storage: RAM 2G, ROM 16GB (up to 128GB extension TF card)
	Display: 3.7'', 640 x 480, sunlight readable with touch screen
	Camera: 8MP, tag available
	Sensors: G-sensor, E-compass, barometer,light-feld sensor, gyro
Communication	Cellular mode: Dual SIM card, dual stand-by
	Cellular network: 4G TDD-LTE, FDD-LTE,WCDMA, GPRS
	Wi-Fi: IEEE 802.11b/g/n, 2.4GHz/5GHz
	Bluetooth: V2.0/4.0
	USB: Type-C, supports OTG NFC
Physical	Weight: 440g(within battery)
	Size: 208mm*83mm*24mm
	Temperature: -20ºC ~ +55ºC(Operating);
	-30ºC~ +65ºC(Storage)
	Free-fall: 1.2m
	Water/Dustpoof: IP67
GNSS Features	GNSS: GPS, GLONASS, AGPS, 20 channels
	Update rate: 1Hz
Power Supply	Battery: Removable 3.7V lithium battery,5200mAh
	Duration: 15 hours

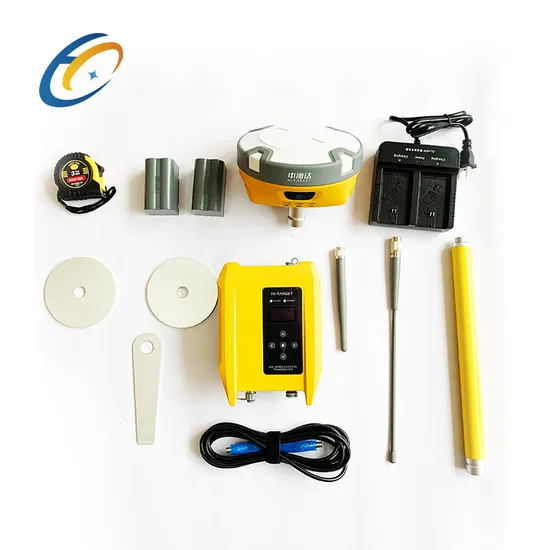

Accessories of v90:

V90 specification
Channels	660 Channels
Satelite Tracked	GPS:L1, L2C/L2P, L5
	BeiDou:B1, B2, B3
	GLONASS: L1C/L1P, L2C/L2P
	Galileo:E1 , E5A, E5B, E5AltBOC,E6
	QZSS:WAAS,MSAS,GAGAN,IRNSS
	SBAS: L1C/A, L5
Static and Fast static Gnss Surveying
Horizontal	2.5mm+0.5ppm RMS
Vertical	5mm+0.5ppm RMS
Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying
Horizontal	1mm+1ppm RMS
Vertical	2.5mm+1ppm RMS
Initialization time	Typically 10 minutes for base while 5 minutes for rover
Initialization reliability	typically > 99.9%
High-precision static GNSS Surveying
Horizontal	2.5mm + 0.5ppm RMS
Vertical	5mm + 0.5ppm RMS
Code Differential GNSS Positionnig
Horizontal	25cm+1ppm RMS
Vertical	50cm+1ppm RMS
SBAS
Positioning accuracy	0.50m Horizontal, 0.85m Vertical
Real Time Kinematic (RTK)
Single Base	Horizonta:8mm+1ppm RMS
	Vertica:15mm+1ppm RMS
Network RTK	Horizonta:8mm+0.5ppm RMS
	Vertical:15mm+0.5ppm RMS
	Initialization time:Typically 2-10s
	Initialization reliability:Typically > 99.9%
Communication
Internal UHF Radio	Frequency: 403-473MHz
	Channels:116 (16 adjustable)
	Transmitting power:2W
	Working Range:3-5km typical, 8-10km optimal
HI-TARGET External UHF Radio(Standard)	Frequency: 403-473MHz
	Transmitting speed:Up to 19.2Kbps
	Channels:116 (16 adjustable)
	5W,10W,20W,30W adjustable
	Working Range:8~10km typical,15~20km optimal
Physical
Dimensions(W×H)	153mm×83mm(6.02inch×3.27inch)
Weight	950g(2.09(b)without internal battery
Shock and vibration	Designed to survive a 3m(9.84ft) natural fall onto concrete
Water/Dustproof	IP67
Humidity	100% condensing
Operation temperature	-45ºC~+75ºC
Storage temperature	-55ºC~+85ºC
Bluetooth	2.1
NFC	NFC flash even
A serial port	RS232 serial port
Energy consumption and working hours
Electrical	Power 6V to 28V DC external power input
	Power consumption≤3.5W
	Automatic switching between internal power and external power rechargeable,removable 7.4V,5000mAh Lithium-ion battery in internal battery compartment
Internal Battery Life	Static more than 10 hours
	RTK rover (UHF/GPRS/3G)6-10 hours
	RTK base more than 6 hours
