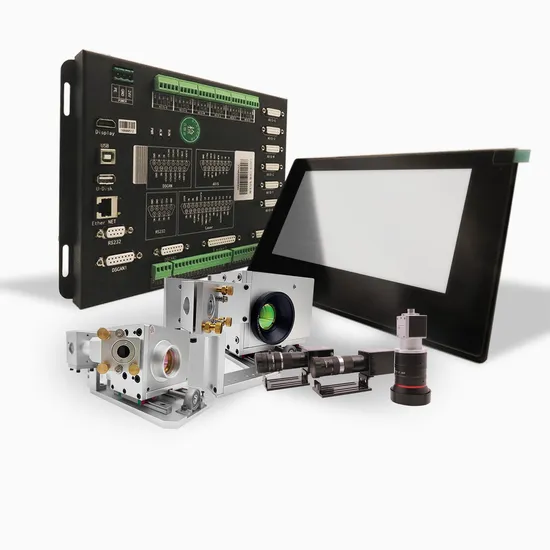

ZJS716-130 Galvanometer Dual Flight Vision Laser Control System Board CO2 Fiber Laser RF Laser Laser Parts Laser Cutting Engrave Clothing Acrylic

Product Description

"Dual-flight" in the laser industry refers to a Multi-axis Linkage System, specifically involving the X and Y axes of the machine frame, as well as the X and Y axes of the galvanometer system. By coordinating the control of these four axes, a multi-axis linkage operation mode is formed, which is applied in high-precision motion control for laser processing, particularly in complex path operations such as ring engraving.
Product Advantage
1.Industry first.
2.High precision, fast speed, 5-10 times the traditional cutting.
3.Support engraving and cutting one, cutting engraving automatic conversion.
4.The galvanometer corrects automatically.
5.Dual-flight: Refers to a multi-axis linkage system in the laser industry.
6.Multi-axis linkage system: A system where multiple axes are coordinated for precise control in laser processing.
7.Machine frame: The structure that supports the main components of the laser system, including the motion axes.
8.X and Y axes of the machine frame: The horizontal and vertical movement axes of the machine frame.
9.Galvanometer system: A system using galvanometer-driven mirrors to precisely direct the laser beam.
10.X and Y axes of the galvanometer system: The axes of the galvanometer mirrors, which direct the laser beam.
11.Coordination of control: The process of synchronizing the movements of multiple axes for precise operation.
Product Feature
1. Support 20 million, 24 million cameras, powerful visual matching algorithm.
2. Support visual extraction contour automatic data generation, template matching and cutting function.
3. Support multi-mark point small vision precision machining.
4. High-precision visual positioning function, sub-pixel accuracy.
5. Carving and cutting machine, with cutting conversion device, not only supports the cutting head function of the ordinary laser machine, but also supports the galvanometer processing mode, which can be automatically switched by the layer processing mode to meet a variety of processing needs.
6. High speed processing with large area and continuous light to improve production efficiency.
7. Can be equipped with 10mm,16mm,20mm size laser spot galvanometer cutting converter head.
8. Panoramic visual identification cutting/engraving, through the feeding device, can achieve automatic production.
9. XY frame and galvanometer double flight linkage, large format graphics once completed, improve product quality.
10. Equipped with magnetic grid ruler, accuracy 0.005mm.
11. Galvanometer closed-loop control, high precision, good cutting effect.
12. Support offline working mode, 16G storage space.
13. Support multi-mark point small vision precision machining.
14. Small camera high-precision camera automatic galvanometer correction, simple operation.
15. Can realize multi-layer processing, engraving, cutting, to meet various process requirements.
16. 6-axis control, maximum pulse output frequency up to 4M.
17. Rich input and output, 16 general output, 16 general input.
Product Application
Product Details

Model number	ZJS716-130
Hardware
Screen	7 inches
Universal outlet	16
Universal input port	16
Number of supported platforms	one
Number of control axes	6-axis
Number of supported lasers	two
Disk space (G)	16
Data transmission mode	Network communication, U disk
Support laser	Rf laser, CO2 glass tube laser
Galvanometer protocol	XY2-100
Function
I/O diagnostic function	support
Counting function	support
Processing graphics, track display function	support
Flight function	support
Z-axis autofocus function	support
Z-axis follow function	nonsupport
Pause recovery function	nonsupport
Automatic feed, synchronous feed function	support
Rotary engraving cutting function	support
Multilingual function	nonsupport
Processing blowing, out of light blowing Qigong	support
Remote control function	support
Optical path conversion function	support
Visual correction function	support
Manual correction function	support
Password protection	support
Error logging function	nonsupport
Ring engraving	support
Dynamic axis	support

Production process
