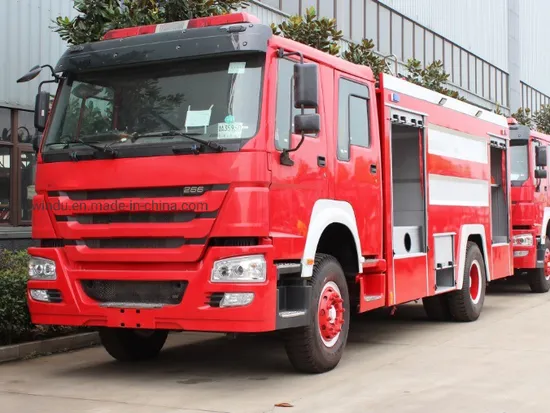

China Brand Water Tower Fire Fighting Vehicle 5313jp25 Special Truck
| US$16,990.00-23,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
5313JP25
Type
Pumper
Certification
ISO9000, CE
Emission Standard
Euro 5
Transmission Type
Automatic
Payload
20T
Fuel
Diesel
Drive Wheel
6×4
Horsepower
251-350hp
Condition
New
Lateral Outrigger Span
8m
Max. Travel Speed
90km/H
Weight (Kg)
25000 Kg
Transport Package
Container Bulk Nude Frame
Specification
25000kg
Trademark
china top
Origin
China
HS Code
8426910000
Production Capacity
100pieces/Month
Product Description
China Brand Water Tower Fire Fighting Vehicle 5313jp25 Special TruckProducts Description 1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers' request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
Product Paramenters
| Chassis | Trunk ZZ5357TXFV464ME |
| Engine power(kW) | 327 |
| Max. torque(Nm) | 2100 |
| Cab Seats | 2 |
| Max speed(km/h) | 90 |
| Fuel tank volume(L) | 300 |
| Wheel base(mm) | 4600+1400 |
| Fuel | Diesel |
| Max working height(m) | 25 |
| Max. working outreach(m) | 14.8 |
| Engine power/GVW(Kw/t) | 10.5 |
| Fire monitor model | AKRON3482+5177 |
| Max. flowing of fire monitor(L/min) | 4800 |
| Max. spraying reach of fire monitor(m) | ≥80 |
| GVW(kg) | 30600 |
| Water tank volume(L) | 8000 |
| Foam tank volume(L) | 2000 |
| Water pump model | RSD100 |
| Max. flowing of water pump(L/min@MPa) | 6000/1.03 |
| Overall dimensions(mm) | 10070×2500×3770 |
| Boom sections | 3 |
| Boom operating time(s) | <90 |
