US$34,000.00-45,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Load Capacity
2000-3000kgs
Transmission
Power Shift Transmission
Application
Warehouse, Narrow Aisle Space, etc
Transport Package
in Nude with Necessary Protection
Specification
2780x1270x2270 mm
Production Capacity
30000units/Year
Product Description

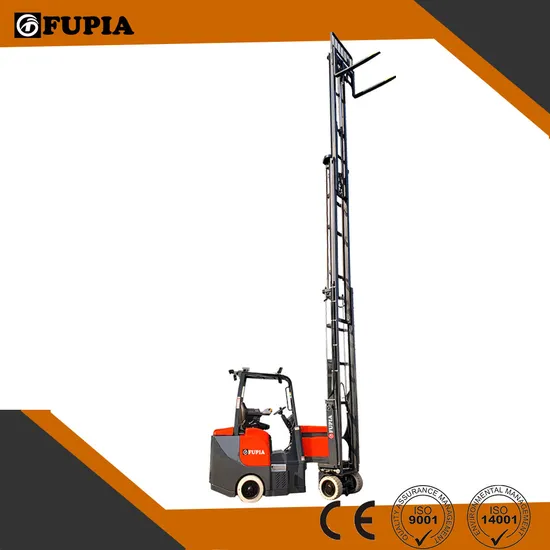

Product Description FUPIA VNA articulated truck lifts to heights up to 12.5m with max. load capacity reach to 3ton. The ultra-narrow 1.9m wide chassis and 210° articulated rotation combine with true four-wheel stability. Fast, safe operation, in a tight footprint. Plus 80V full AC technology guarantees low energy consumption and maintenance costs.What's more, by using the one truck, users can increase productivity and eliminate time-consuming double handling and speed up "truck to rack" operations.
With the FUPIA VNA forklift you can create up to 50% more warehouse capacity.
- With greater reach and capacity, it can lifts up to 12.5m, offers VNA operation in aisle-widths of just 2 m and has impressive load/lift capacity of up to 3.0t, increasing warehouse storage by 50% and lowering costs.
- The forklift with 210 degree articulated angle with flexible working in the ultra-narrow channel. The full AC system provides a more efficient performance, stronger power and free maintenance.
- easy operation
- The electro-hydraulic proportional valve, valve speed can be adjusted according to the will, making it easier and more accurate to pick up and offloading the goods.
- Optional finger tip control provides better control experience, more flexible and accurate operation. It provides special picking mode which is easy to operate. With better micro performance it is very suitable for high lifting handling working condition.
Product Parameters
General | 1 | Brand | | FUPIA |
2 | Model | | FBJ15 | FBJ20 |
3 | Power Type | | Electric |
4 | Rated Load Capacity | kg | 1500 | 2000 |
5 | Load Centre | mm | 600 |
Characteristic & Dimension | 6 | Lifting Height | mm | 6650 | 9450 |
7 | Free Lift Height | mm | 2215 | 3435 |
8 | Mast Closed Height | mm | 3115 | 4315 |
9 | Mast Extended Height | mm | 7911 | 10691 |
10 | Overall Length | mm | 2780 |
11 | Rear Chassis Width | mm | 1030 | 1270 |
12 | Front Chassis Width | mm | 980 |
13 | Seat Height | mm | 1220 |
14 | Mast Tilt Angle (F/R, α°/β°) | deg | 1°/3° |
15 | Ground Clearance | mm | 50 |
16 | Overhead Guard Height | H5(mm) | 2270 |
17 | Aisle Width | mm | 1900 |
Performance | 18 | Travel Speed | km/h | 16 |
19 | Lifting Speed (Full Load/ No Load) | mm/sec | 440/500 |
20 | Max.Gradeability (Full Load/No Load) | % | 18/20 |
Chassis | 21 | Tyre (Front) | mm | 412x174 |
22 | Tyre (Rear) | mm | 457x150 |
23 | Wheel Base | mm | 1745 |
Weight | 24 | Weight ( exclude battery ) | kg | 5150 | 5310 |
25 | Weight ( include battery ) | kg | 6400 | 6900 |
Power | 26 | Battery | V/Ah | 80/400 | 48/900 |
27 | Controller | | ZAPI/CURTIS |
28 | Traction Motor | kw | AC 19.5 |
29 | Lifting Motor | kw | AC 15 |
