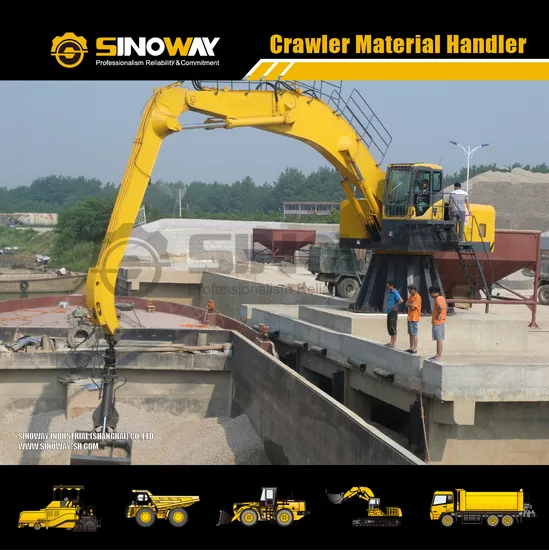

Stationary Grapple Crane 25 Ton Load and Unload Crane
| US$227,000.00-233,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWMH250S
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Lifting Torque
300 Kn.M
Orange Grab
0.4 M3
Operating Weight
25 Ton
Motor Power
75kw
Warranty
One Year
Model
Swmh250s
Brand
Sinoway
Transport Package
Nude
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84314990
Production Capacity
100 PCS / Year
Product Description
Main FeaturesSINOWAY Electro-hydraulic fixed stack arm grabber's rotary, hoisting, luffing and grab opening and closing operations are all driven by electro-hydraulic and pilot control. The operation is stable, the actions can be steplessly regulated, and the same operating efficiency can save 60% energy consumption compared to the internal combustion engine drive. The driver's cab is equipped with a dual-purpose air conditioner and a multi-directional adjustment seat for a comfortable working environment. After fitting different hydraulic grabs, they all have small weight and large gripping force, and carry out grabbing operations on bulk materials such as sandstone and coal.
This fixed type picking machine is the best equipment for bulk cargo handling at fixed working places such as ports, stations and docks.
We also can make customized material handler machine according to your actul working condition.
Product Show
Specification
Main performance parameters | Maximum rated lifting capacity | kg | 10000 | ||
| Working range at maximum rated lifting capacity | mm | 3000 | |||
| Maximum lifting moment | kN·m | 300 | |||
| Maximum lifting height | mm | 11300 | |||
Working time | Main luffing time | Dropping boom in the whole journey | s | ≤17.0 | |
| Lifting boom in the whole journey | s | ≤18.0 | |||
| Maximum rotation speed | r/min | ≥9.0 | |||
Auxiliary luffing time | Lifting boom in the whole journey | s | ≤14.0 | ||
| Dropping boom in the whole journey | s | ≤10.0 | |||
