Zhengyue Factory Wholesale Metal Injection Molding Machine

Product Description

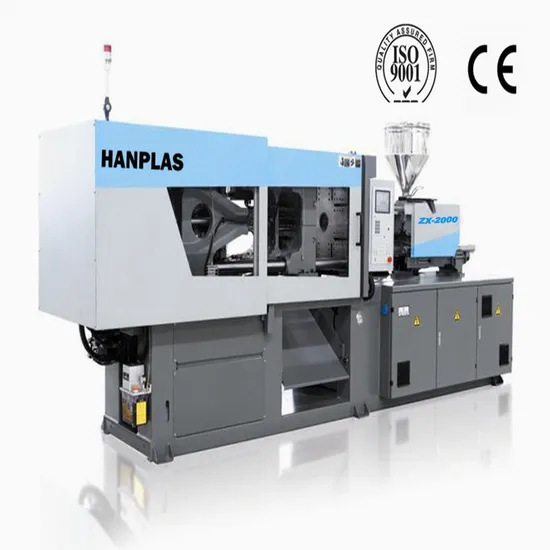

Zhengyue Factory Wholesale Metal Injection Molding Machine
Features:
User friendly: Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
Precision: high optimistic mechanical structure with high-tech controller, greatly increase machine service life and precise.
Speedy: High injection speed reducing cycle time.
Durable: Thicker platens to add strength, free from deforming molds.
Stable: dual cylinder injection, perform stability and reliability.

ZX-2000	Injection Unit Date		A	B	C
	Screw diameter	mm	130	140	150
	Screw L/D ratio	/	23.7	22	20.5
	Theoretical shot volume	cm3	9291	10776	12370
	Shot weight(PS)	g	8548	9914	11380
	Injection rate	g/s	1194	1385	1590
	Max.screw speed	rpm	90
	Clamping Unit
	Clamping force	KN	20000
	Toggle stroke	mm	1550
	Space bettween tie bars	mm	1610x1460
	Min.mold thickness	mm	700
	Max.mold thickness	mm	1600
	Hydraulic ejection stroke	mm	405
	Hydraulic ejection force	KN	352
	Others
	Hydraulic system pressure	Mpa	16
	Pump motor	kw	35+35+35+35
	Heating capacity	kw	80
	Oil tank capacity	L	2800
	Machine dimensions	m	16x3.8x3.5
	Machine weight	Ton	115

Dimension:
Zhengyue Group is a specialized company engaging in the Research, Development ,Production and Sales of Mechanical and electrical integrated products.
There are mainly five product series Including: CNC Miller, Machining Center, Plastic Injection Molding Machine, CNC wire cutting Machine, CNC Electrical Impulse.
In recent years Zhenyue has got honours in succession, e.g."One of Top Hundred Key Enterprises in Ningbo", "AAA Credit Company in Ningbo", ETC.
Zhengyue products won HI-tech Prize and New Product Prize of the Municipal ,Provincial and State Level. The total construction scale of Zhengyue reaches to 66,000 square meters. With a first-class managing center ,it now has over 500 workers and staffs, among which 30% are R&D personnel. This R&D team allows Zhengyue to develop new products with the worlds most advanced technology.
After-Sale Service :
1. Technical files service provided.
2. On-site training service provided.
3. Free training course at our plant.
4. Lifetime maintenance free of charge.
5. Technical support online service provided.
6. Spare parts replacement and repair service provided.
7. We will provide the consumable parts at an agency price when you need replacement.
FAQ :
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
