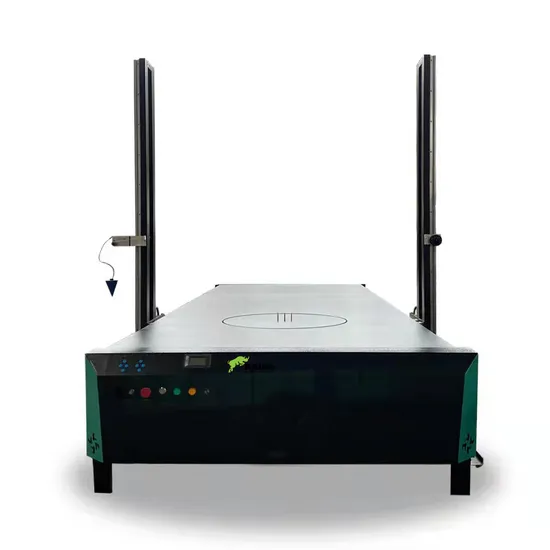

EPS Cutting CNC Hot Wire Polystyrene Polistiren Polystyrene EPS Shape Cutting Machine Styrofoam 3D 2D Foam Cutting Machine with Table 5FT by 10FT

Product Description

EPS Cutting CNC Hot Wire Polystyrene Polistiren Polystyrene EPS Shape Cutting Machine Styrofoam 3D 2D Foam Cutting Machine with Table 5ft by 10ft
Technical Parameters

TECHNICAL DATA
Model	R-E3015
X Axis Stroke	3000mm
Y Axis Stroke	1500mm
Max. Foam Width	1500mm
Hot wire quantity	Single wire
Cutting Wire Dia.	0.40mm
Control System	D&T Profile
Program Run	By USB
Cutting Speed	0~3m/min
Total Power	~800W
Gross Weight	450kg
Overall Dimension	2650m*1600mm*1850 mm
Packing size	3650*1550*660mm
Unit Price	5920USD

Product Description
Suit for: Polystyrene
Cutting Line: Hot Wire
The machine consists of a structural steel welded frame with structural steel harp carriage and wire harp. Motion and hot wire control systems are both solid states. The motion control system includes a high-quality D&T Two Axis Motion Controller, Stepping drives, and control system. It also includes DXF software for simple and easy file conversion. The hot wire control system is AC powered and will Single wire.
Any table working size can be customized as per customer detail requirement !!
The machine consists of:
1). Portal Frame.
It is a structural steel welded frame with structural steel harp carriage and wire harp.
2). Working table;
3). Control Cabinet.
It included Motion and hot wire control systems. The motion control system includes a high quality D&T Two Axis Motion Controller, Stepping drivers, and one Servo control system. It also includes DXF software for simple and easy file conversion.
There is one Evoc Industrial computer with monitor for human communication and program design.
4). Transformer.
It is used to heating the wire. It is a two phase AC voltage heating source. Our standard is single wires at 380/415 volts.
Application
Rhino CNC hot wire foam cnc cutting machine is mainly used for
the EPS foam block cutting work for the industry such as package industry, eps foam cushion making, foam mould industry, eps foam letter cutting, architectural decoration, building foam pillar cutting, advertising industry, arts and craft of foam product. Machine could add single or mulitple cutting wires according to different working size requirment.
Detailed Photos
Machine detail components:
1. High quality hot wire 1-10 pieces as per requirements
2. Strong machine frame with double levels suqare rail HIWIN brand
3. Voltage regulator :1-10kva single phase voltage regulator ,support up to 10 hot wires cutting at same time
4. Mach3 control system with clean electronic control box
5. HIWIN20 Square rail and high precision rack pinion
6. High quality steel hot lines storage
Samples
Certifications
We already gain CE /ISO certificate and get audited supplier from SGS , we all products as 5 axis cnc router, 4 axis cnc router, 3 axis cnc router, laser cutting machine, laser marking machine, laser cleaning machine, laser welding machines can be exported to Europe safely and are popular in all over the world.
Packaging & Shipping

Rhino hot wire cutting machine package and delivery will be completed under professional workers and guidance of technician, usually it will take 8-10 hours to finish the package and delivery into container.
The main process is :Gantry disassemble
- Y axis supporter disassemble
-Electronic box disassemble
Package and Loading process: We put gantry and head z axis together with Y two sides supporter, then firstly loading into container by forklift
--T-SLOT working table package one set and load into container
-- Electronic box package one set and load into container
--Dust collector package into one set load into container
--Other tools bos and small pieces package one set load into container

Company Profile
FAQ :

1. What Materials Can It Cut?
Our hot wire cutting machine can cut a variety of foam materials including polystyrene (EPS), polyethylene (EPE), and polyurethane (PUR). 2. Cutting Precision and Accuracy:
The machine offers high precision and accuracy with a tolerance of ±0.1mm. It can handle materials up to 12 inches in thickness and 48 inches in width. 3. Machine Specifications:
The machine's dimensions are 60 inches in length, 30 inches in width, and 40 inches in height, weighing approximately 80 pounds. The cutting area is 48x48 inches. 4. Temperature Control:
The temperature of the hot wire is digitally controlled, allowing for consistent and adjustable heat settings to ensure optimal cutting performance. 5. Power Requirements:
The machine operates on a standard 110V electrical outlet with a power consumption of 300W. 6. Ease of Use:
Our machine is designed to be user-friendly with a straightforward interface. We provide a comprehensive user manual and access to instructional videos. 7. Software and Compatibility:
The machine comes with proprietary software compatible with Windows and macOS systems, allowing for easy design and cutting control. 8. Maintenance and Durability:
Minimal maintenance is required; simply ensure the wire is clean and replace it when necessary. The machine is built to last with a durable frame and components. 9. Safety Features:
Safety features include an emergency stop button, thermal cut-off protection, and an insulated handle to prevent burns. 10. Cost and Warranty:
- The total cost of the machine is $2,500, which includes all necessary accessories and software. We offer a one-year warranty covering parts and labor.
11. Customer Support:
- We provide 24/7 customer support via phone and email. Additionally, we have service centers in major cities for in-person troubleshooting.
12. Reviews and Testimonials:
- We have numerous positive reviews and testimonials from satisfied customers. You can read them on our website or contact us for references.
13. Training and Installation:
- We offer free online training sessions and detailed installation guides. If needed, we can arrange for an on-site technician to assist with installation.

Welcome to send us your inquiry and any machine can be customized as per your needs!
We are expecting your news alwasy ~
