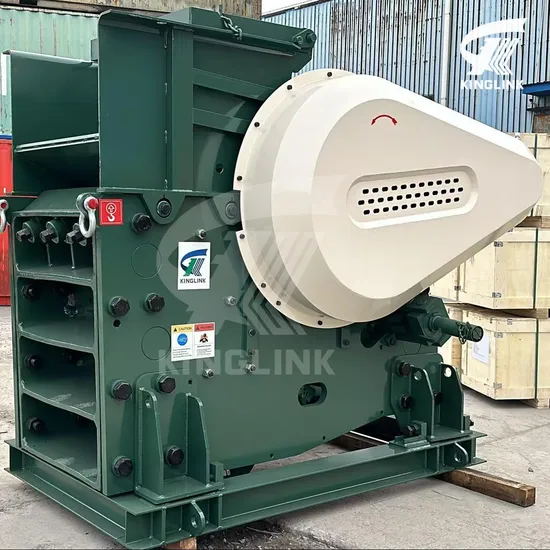

Kinglink C Series Jaw Crusher C80 for Basalt Granite River Stone

Kinglink C Series Jaw Crusher C80 for Basalt Granite River Stone

US$150,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
C80
Drive
Electric
Feed Size
800X510
Object
Basalt, Copper Ore, Granite, Iron Ore, Limestone
Condition
New
Delivery Time
20 Working Days
Warranty
12 Months
Transport Package
Export Standards
Specification
C80
Trademark
KINGLINK
Origin
China
HS Code
84742090
Production Capacity
100 Sets Per Year

Product Description

C series Jaw Crusher PRODUCTS PROFILE FEATURES AND BENEFITSC series Jaw Crusher has adopted the most advanced crushing technology and research achievement; it is the new crushers with the advanced level, which are successfully developed by using finite element analysis method based on years' experience on jaw crusher design and manufacture.
Compare with traditional jaw crusher, it adopts high-strength material, first-class manufacturing process, and the C series Jaw Crushers provide the advantages of excellent-strength structure, reliable equipment, higher crushing ratio, bigger capacity and lower cost.
STRUCTURE1.Two kinds of Frames: Welding and Assembled. Usually, Small and medium sized model adopts welding, large model adopts assembled.
2.Welding frame adopts wide transitional round edge, significantly reducing the stress concentration, ensure the frame under-equal strength. It owns the features of good impact resistance and lowailure rate, bears same pressure, etc
3.Assembled frame uses advanced modulation, no-welding frame structure design, high endurance strength and reliability. The whole set assembling design is convenient for the transporting and installation especially suitable for installation of underground mine shaft, high altitude mine, as well as other narrow and difficult transporting place. OPTIMIZED CAVITY DESIGN LARGE MATERIAL FEEDING SIZEUse the symmetrical "V shape cavity design, large angle of toggle plate, large stroke, comparing with the traditional PE series jaw crusher, the C series has larger feeding particle size, higher capacity more uniform particle size, jaw plate loss reduction LONG WORKING LIFE OF THE HEAVY-DUTY MOVABLE JAWASSEMBLYHeavy-duty Movable Jaw Assembly adopts heavy-duty eccentric shaft,high quality heavy-load rolling bearings and finite element software optimized movable jaw plate ensuring impact resistance and high stability of moving jaw assembly; labyrinth seal and centralized lubrication system guarantee the bearing lubrication oil is not contaminated and lubrication becomes more convenient. Therefore the assembly can have a long working time and stability.
SHIELD DESIGN FOR THE MOVABLE JAW
Heavy shield is installed above the movable jaw to avoid the material impact. It can effectively protect the movable jaw and its internal bearing from damaging
OVERALL BEARING SUPPORT HOUSINGOverall cast steel bearing housing fully compatible with the frame, avoiding the combined bearing housing has a unnecessary radical load on the bearing during the fastening process, making the bearing to run more smoothly
CONVENIENT DISCHARGE SETTING ADJUSTMENT
C series Jaw Crusher adopts mechanical or hydraulic adjustment for the discharge range, compared with shim adjustment, double wedge adjustment operations is simpler, secure, fast, and saves more downtime INTEGRATED MOTOR INSTALLATIONIntegrated installation of motor seat and frame can not only save installation space, but also can prolong the service life of v-belt, due to the synchronous movement of frame, motor seat, and motor, adjustable motor seat can adjust v-belt tension VIBRATION ABSORPTION DESIGNCrusher fixed by rubber vibration absorption device, which can effectively absorb vibration peak, while allow the crusher to move vertically and longitudinally, thus reducing the impact on the foundation
PRODUCT SIZE MAP PRODUCT SIZE TABLE
C80 C100 C105 C110 C125 C140 C145 C160
A mm 1700 2400 2050 2670 2900 3060 3330 3550
B mm 1200 1700 1450 2000 2100 2260 2430 2650
C mm 2020 2880 2630 2830 3370 3645 3855 4200
D mm 1200 1725 1530 1810 2090 2360 2475 2540
E mm 1565 2250 1920 2385 2690 2890 2870 3180
F mm 160 245 200 380 450 450 450 450
G mm 610 818 780 950 1073 1172 1140 1315
H mm 1000 1400 1200 1500 1600 1600 1800 1800
J mm 930 1170 1200 1300 1470 1640 1640 1880
K mm 117 267 180 250 280 300 250 385
TECHNICAL PARAMETERS
C80 C100 C105 C110 C125 C140 C145 C160
Width of feed port 800 1000 1050 1100 1250 1400 1400 1600
Depth of feed port 510 760 700 850 950 1070 1100 1200
Motor power 75 110 110 160 160 200 200 250
speed 350 260 300 230 220 220 220 220
Product size Tight side outlet Ton/Hour Ton/Hour Ton/Hour Ton/Hour Ton/Hour Ton/Hour Ton/Hour Ton/Hour
0-30 20
0-35 25
0-45 30
0-60 40 65-85
0-75 50 80-95
0-90 60 95-125
0-105 70 115-150 150-210 155-200 190-250
0-120 80 130-170 170-225 175-230 210-275
0-135 90 150-195 190-245 200-260 235-305
0-150 100 165-215 215-280 220-290 255-330 290-380
0-185 125 210-275 265-345 280-365 310-405 350-455 385-500 400-520
0-225 150 250-325 315-410 335-435 370-480 410-535 455-590 470-610 520-675
0-260 175 290-380 370-480 390-510 425-550 470-610 520-675 540-700 595-775
0-300 200 420-545 445-580 480-625 530-690 590-765 610-795 675-880
0-340 225 590-770 655-850 680-885 750-975
0-375 250 650-845 725-945 750-975 825-1070
0-410 275 820-1070 900-1170
0-450 300 980-1275

Note : the data is sampled according to on-site operation conditions .
The closed side setting is used for production according to applications and production requirements For detailed information about the applications of the crusher, please consult Kinglink. The above figures show the output and capacity of the crusher for processing medium and hard materials with bulk density of 1. 6t/m. The materials can readily enter the crushing chamber without bridging, the minimum value will be used with feeding material in case of eliminating fines(smaller than crusher setting), and maximum value will be used for feeding materials including fines. The capacity may vary depending on the feeding method and feed characteristics such as gradation, moisture, clay content bulk density and crushability.
Measurement of the jaw crusher s closed side setting varies depending on the jaw profile that is being used, which will affect the capacity of the crusher and the size of the product. The capacity and performance of the crusher can be improved by following factors:
1.Proper selection of the jaw plate
2.Proper feed gradation
3.Controlled feed rate
4.Enough capacity of the feeder and adequate feed width
5.Adequate crusher discharge area
6.Suitable discharging conveyor is well matched with the maximum capacity of the crusher TECHNICAL DATA
C80 C100 C105 C110 C125 C140 C145 C160
Feeding port mm 800*510 1000*760 1050*700 1100*850 1250*950 1400*1070 1400*1100 1600*1200
Motor power kw 75 110
(90)
110 132
(160)
160
(132)
200
(160)
200 250
(200)
speed rpm 350 260 300 230 220 220 220 220
Length of fixed jaw plate mm 1100 1600 1450 1800 2000 2100 2300 2500
Maintenance of maximum weight
(Movable jaw assembly without flywheel)
kg 2870 7060 4020 9000 12960 15950 18600 21380
Gross weight (excluding support) kg 7520 20100 13500 25060 36700 45300 53800 68600
