CNC Bridge Saw Machine for Cutting Granite Marble Quartz with 3D Software

Product Description

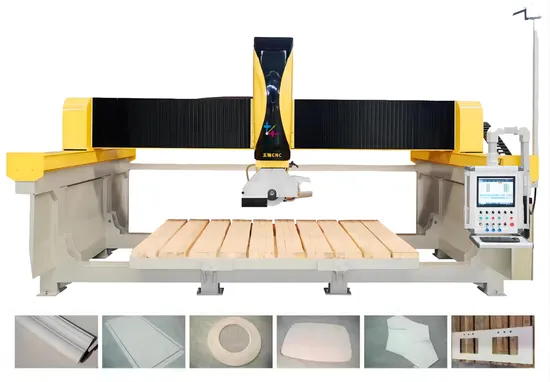

5 Axis CNC Bridge Saw Machine CNC Stone Cutting Machine - Experience unparalleled precision and versatility with our state-of-the-art 5 Axis CNC Bridge Saw Machine, engineered specifically for cutting stone with unparalleled accuracy.
For Sawing & Cutting Stone Marble Granite Dekton Sintered Stone countertop - Perfect for meticulous sawing and cutting tasks, our machine handles Stone, Marble, Granite, Dekton, and Sintered Stone countertops with ease and finesse.
Product Description
This stone cutting machine is a mono-bloc 5-axis CNC machine - Embrace the power of this all-in-one, robust mono-bloc 5-axis CNC stone cutting machine designed to meet all your cutting needs.Besides straight cutting, this stone machine is also able to make polygon cutting, straight/arc stone line cutting, curve cutting, vanity top cutting, internal/external round shape cutting and chamfering - Versatility redefined: Our CNC machine transcends traditional cutting by enabling polygon, straight/arc stone line, curve, vanity top, internal/external round shape cutting, and chamfering with precision.
Featuring as smaller installation space, higher precision and efficiency, more simple operation, this CNC stone machine is your best choice for processing stone - Compact, precise, efficient, and user-friendly, our CNC stone machine is the optimal choice for any stone processing task.
Product Parameters

X-axis route	3500mm		Cutting thickness	0-180mm
Y-axis route	2300mm		Worktable size	3200*2000mm
Z-axis route	450mm		Worktable tilting	0-85°
A-axis route	0-90°		Main motor power	18.5KW
C-axis route	±360°		Total power	31KW
Saw blade diameter	350-600mm		Water Consumption	4m³/h
Saw blade speed	0-6000r/min		Gross weight	5600KG
Machine dimension(L*W*H)			6000*4300*3400mm

Detailed Photos
INVT Servo Drive Motor - Equipped with the powerful INVT Servo Drive Motor for superior performance.
Transmission: Linear guide + Taiwan Hiwin ball screw - Ensuring smooth and precise movements with the combination of linear guide and Taiwan Hiwin ball screw.
Lubrication method: X/Y/Z axis is automatically lubricated by electric oil pump, A/C axis is lubricated by grease - Advanced lubrication system: Automatic electric oil pump for X/Y/Z axis and grease lubrication for A/C axis ensure optimal performance.
Computer operation, simple and clear interface - User-centric design: Effortless computer operation with an intuitive and clear interface.
Use HCFA system - Harness the power of the HCFA system for seamless operations and superior control.
Cutting precision - Achieve unmatched cutting precision with our advanced CNC technology.
USB port for transferring files - Easily transfer files with the built-in USB port.
Self-developed/18.5KW high-speed spindle - Experience rapid and efficient cutting with our self-developed 18.5KW high-speed spindle.
Water-cooled spindle - Maintain optimal performance with the reliable water-cooled spindle.
Red laser reticule apparatus - Utilize the red laser reticule apparatus for enhanced accuracy and precision.
Hitachi inverter - Featuring a Hitachi inverter for consistent and reliable performance.
With camera function, AI cutter presetting - Benefit from advanced camera functionality and AI cutter presetting for automated, precise cuts.
Hydraulic Turnover Table - Equipped with a hydraulic turnover table for ease of operation and flexibility.
Products of special shapes - Capable of creating products with unique and intricate shapes.
Packaging & Shipping
This stone machine can be loaded into a 20'GP Container - Designed for convenient loading into a 20'GP Container for transport.
.
Installation Instructions
1. There are guide videos showing how to use this stone machine, and an English instruction manual sent to you with the machine - Step-by-step guide videos and a detailed English instruction manual accompany your machine.
If there is still any question, we will provide free professional online training for you until you can run the machine well - Enjoy free professional online training until you're fully proficient.
2. You can come to our factory to learn the installation and operation - Visit our factory for hands-on learning on installation and operation.
3. We can send engineer to help you install and teach you use the stone machine - Our engineers are available to assist with installation and training on-site.
After Sales Service
Our CNC stone machines have remote troubleshooting function, our engineer can solve most problems by remote control, otherwise we will give video guide - Benefit from remote troubleshooting and video guidance for prompt issue resolution.
